📌 Product Overview

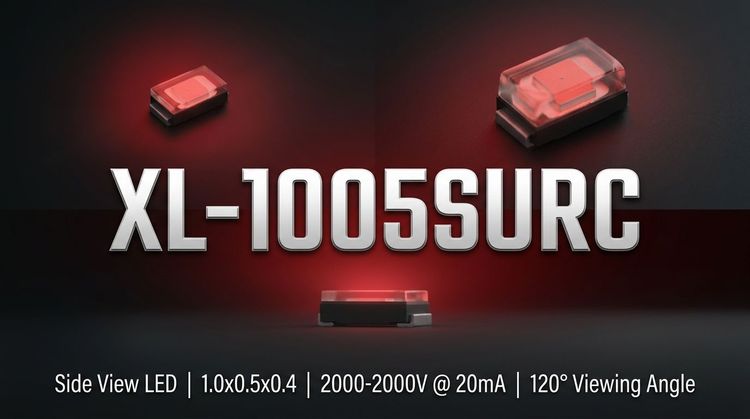

The XL-1005SURC is a surface-mount (SMD) red LED from XINGLIGHT, featuring a compact 0402 (1.0x0.5x0.4mm) package. Designed for high-precision automated assembly, it is ideal for applications requiring miniature indicators and backlights. Its primary focus is on reliable performance in demanding environments, including automotive and industrial electronics.
🔍 Typical Applications
- Automotive electronics: Backlight key lights, indicator lights
- Industrial products: Electronic instrument panels, industrial equipment
- Consumer electronics: Mobile phone button lamps, routers, TV boxes
- General electronics: LED backlights, status indicators for computers and digital devices
⚙️ Key Technical Specifications
| Parameter | Symbol | Min | Typ | Max | Unit | Test Condition |
|---|---|---|---|---|---|---|
| Luminous Intensity | Iv | 80 | 120 | - | mcd | IF=20mA |
| Dominant Wavelength | λd | 620 | 625 | - | nm | IF=20mA |
| Forward Voltage | VF | 1.9 | 2.1 | - | V | IF=20mA |
| Viewing Angle | 2Ø1/2 | - | 120 | - | deg | IF=20mA |
⚠️ Absolute Maximum Ratings & Process Limits
| Parameter | Symbol | Value | Unit |
|---|---|---|---|
| Max Power Dissipation | PD | 50 | mW |
| Max Continuous Forward Current | IF | 20 | mA |
| Peak Forward Current | IFP | 60 | mA |
| Max Reverse Voltage | VR | 5 | V |
| Operating Temperature | TOPR | -40 to +85 | °C |
| Reflow Soldering | TSOL | 260°C ≤6s | - |
📦 Package, Dimensions & Assembly Notes
- Package Type: 0402 (1.0x0.5x0.4mm) with clear epoxy.
- SMT Compatibility: Suitable for automated SMT production and IR reflow soldering (both leaded and lead-free processes).
- Moisture Sensitivity: MSL Level 3; requires standard baking and handling per JEDEC guidelines.
- Assembly Note: Peak temperature must not exceed 260°C during soldering, with a dwell time ≤6 seconds.
🚀 Sourcing & Supply Considerations
- Binning Options: Available in brightness (D2), voltage (N11-4), and wavelength (HR02) grades for consistent performance.
- Supply Chain: EIA-standard packaging ensures compatibility with automated pick-and-place systems.
- Verification: Authentic components comply with RoHS standards; verify supplier channels for quality assurance.
❓ FAQ
Q: What is the brightness tolerance for the XL-1005SURC?
A: Brightness is graded with a ±10% tolerance (Code D2: 80-120 mcd @ IF=20mA).
Q: Is this LED suitable for lead-free reflow processes?
A: Yes, it withstands lead-free reflow profiles with a peak temperature of 255°C for 5-10 seconds.
Q: What is the ESD rating for this component?
A: The XL-1005SURC has an ESD rating of 2000 V, providing robust protection against electrostatic discharge.
Q: Can this LED be used in high-temperature environments?
A: Yes, it operates reliably in temperatures ranging from -40°C to +85°C, making it suitable for automotive and industrial applications.
Q: What is the recommended storage condition?
A: Store at -40°C to +85°C; adhere to MSL Level 3 handling guidelines to prevent moisture damage.
Q: Is this component RoHS compliant?
A: Yes, the XL-1005SURC is manufactured in compliance with RoHS environmental standards.
