📌 Product Overview

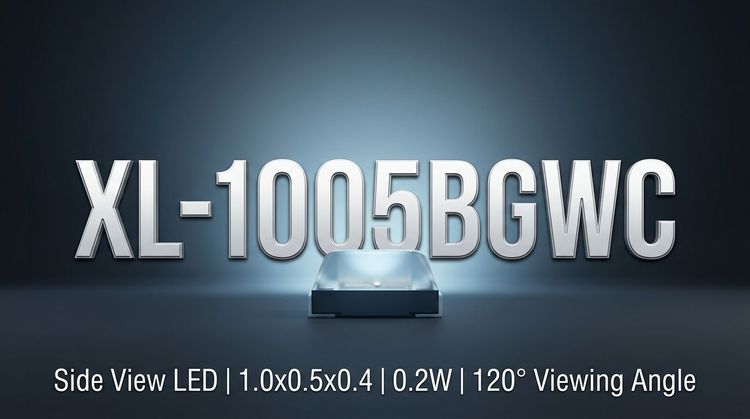

The XL-1005BGWC is a miniature 0402 surface-mount LED (1.0x0.5x0.4 mm) from XINGLIGHT, designed for applications requiring compact, high-intensity lighting. It features an ice blue emission color and a light green epoxy colloid. This component is engineered for seamless integration into automated SMT assembly processes and is suitable for reflow soldering, making it ideal for space-constrained electronic products.
🔍 Typical Applications
- Automotive Electronics: Backlight key lights, indicator lights
- Industrial Products: Electronic instrument panels, industrial equipment
- Consumer Electronics: LED backlights, general indicator applications
- Communication Products: Mobile phone button lamps, routers, TV boxes
- Digital Devices: Computer and mobile device components
⚙️ Key Technical Specifications
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
|---|---|---|---|---|---|---|
| Luminous Intensity | Iv | 450 | - | 800 | mcd | IF=20mA |
| Forward Voltage | VF | 2.7 | - | 3.4 | V | IF=20mA |
| Viewing Angle | 2Ø1/2 | - | 120 | - | deg | IF=20mA |
| Color Coordinates (x) | X | - | 0.19 | - | - | IF=20mA |
| Color Coordinates (y) | Y | - | 0.26 | - | - | IF=20mA |
| Color Rendering Index | Ra | - | 72 | - | - | IF=20mA |
🔒 Absolute Maximum Ratings & Process Limits
| Parameter | Symbol | Value | Unit |
|---|---|---|---|
| Max Power Dissipation | PD | 70 | mW |
| Max Continuous Forward Current | IF | 20 | mA |
| Peak Forward Current | IFP | 80 | mA |
| Max Reverse Voltage | VR | 5 | V |
| Operating Temperature Range | TOPR | -40 to +85 | °C |
| Storage Temperature Range | TSTR | -40 to +85 | °C |
| Lead Soldering Temperature/Time | TSOL | 260°C ≤6s | - |
📦 Package, Dimensions & Assembly Notes
The XL-1005BGWC is packaged in a 0402 (1.0x0.5x0.4 mm) surface-mount package with a moisture sensitivity level (MSL) of 3. It is compliant with EIA standard packaging and is suitable for SMT automated production. For assembly, it is compatible with both leaded (260°C ≤6s) and lead-free (255°C ≤10s) reflow soldering processes, adhering to J-STD-020C guidelines.
🚀 Sourcing & Supply Considerations
- Grading options available for brightness (E3-E7) and forward voltage (M18-9 to M19-6).
- RoHS compliant, suitable for automotive and industrial applications.
- Verify supply chain authenticity for mass production to avoid counterfeit risks.
❓ FAQ
Q: What is the brightness range for the XL-1005BGWC?
A: The LED is graded from E3 (450-500 mcd) to E7 (700-800 mcd) at IF=20mA, with a brightness tolerance of ±10%.
Q: Is this LED suitable for automotive applications?
A: Yes, it is commonly used in automotive electronics for backlight key lights and indicator lights, with an operating temperature range of -40°C to +85°C.
Q: What is the recommended soldering profile for this component?
A: For leaded processes, use 260°C for ≤6s; for lead-free processes, use 255°C for 5-10s, following J-STD-020C guidelines.
Q: How does the XL-1005BGWC handle high-temperature environments?
A: It can withstand storage and operating temperatures up to +85°C and has passed high-temperature reliability tests (85°C for 1000 hours).
Q: Can this LED be used in reflow soldering?
A: Yes, it is specifically designed for SMT automated production and is compatible with both infrared reflow soldering processes (leaded and lead-free).
Q: What is the color rendering index (CRI) of this LED?
A: The typical CRI (Ra) is 72, making it suitable for applications requiring accurate color representation.
