📌 Product Overview

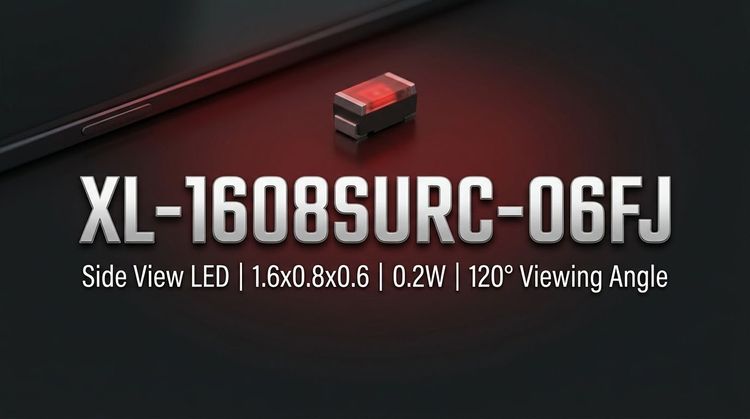

The XL-1608SURC-06FJ is a miniature surface-mount LED from XINGLIGHT, featuring a compact 1.6x0.8x0.6mm footprint and red luminous output. Designed for high-density applications, it supports automated SMT assembly and complies with ROHS standards. Its low power consumption and wide 120° viewing angle make it suitable for space-constrained medical devices, automotive indicators, and industrial control panels where reliability and miniaturization are critical.
📌 Typical Applications
- Medical equipment: Endoscopes, oximeters
- Automotive electronics: Backlight keypads, indicator lights
- Industrial products: Electronic instrument panels, control devices
- Smart home: White appliance indicators, nixie tube displays
- Communication products: Mobile phone button lamps, router status LEDs
📌 Key Technical Specifications
| Parameter | Symbol | Min/Typ/Max | Unit | Test Condition |
|---|---|---|---|---|
| Luminous Intensity | Iv | 240/600 | mcd | IF=20mA |
| Dominant Wavelength | λd | 615/630 | nm | IF=20mA |
| Forward Voltage | VF | 1.8/2.4 | V | IF=20mA |
| Viewing Angle | 2Ø1/2 | 120° | deg | IF=20mA |
🔒 Absolute Maximum Ratings & Process Limits
| Parameter | Symbol | Value | Unit |
|---|---|---|---|
| Max Power Dissipation | PD | 50 | mW |
| Max Continuous Forward Current | IF | 20 | mA |
| Peak Forward Current | IFP | 80 | mA |
| Operating Temperature | TOPR | -40~+85 | °C |
| Soldering Temp/Time | TSOL | 260°C≤6s | / |
📏 Package, Dimensions & Assembly Notes
The XL-1608SURC-06FJ uses a standard SMD package with precise 1.6x0.8x0.6mm dimensions. It features a transparent epoxy colloid and complies with EIA standard packaging for automated SMT placement. Moisture sensitivity level (MSL) is 3, requiring standard baking and handling procedures. Recommended soldering follows IPC guidelines, with a peak temperature of 260°C for ≤6 seconds.
📦 Sourcing & Supply Considerations
- Binning Options: Available in brightness (D7-E5) and voltage (M17-9/M18-5) grades for consistency.
- Authenticity: Verify through authorized XINGLIGHT distributors to avoid counterfeit components.
- Lead Times: Standard stock available; contact for high-volume or custom binning support.
❓ FAQ
Q: What is the brightness tolerance for this LED?
A: Brightness is graded with ±10% error (e.g., D7: 240-270 mcd).
Q: Is this LED suitable for high-temperature automotive applications?
A: Yes, it operates at -40°C to +85°C, meeting automotive requirements.
Q: How should I handle moisture sensitivity during assembly?
A: MSL 3 requires baking at 125°C for 24 hours if exposed to >48 hours.
Q: Can I use this LED for pulse-driven applications?
A: Yes, peak current up to 80mA (pulse width ≤0.1ms, duty ≤1/10).
Q: What standards does this LED comply with?
A: ROHS-compliant with MIL-STD and JIS reliability test certifications.
