📋 Product Overview

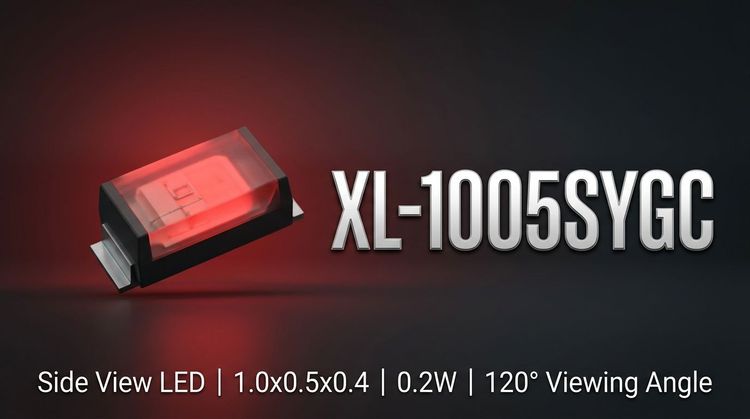

The XL-1005SYGC is a surface-mount LED (SMD) from XINGLIGHT, featuring a compact 0402 package (1.0x0.5x0.4mm). It emits a yellow-green light with a 120-degree viewing angle, making it suitable for applications requiring bright, wide-angle illumination. Designed for automated SMT assembly, it is ideal for backlighting keys, status indicators, and other compact electronic interfaces where reliability and space efficiency are paramount.
🔍 Typical Applications
- Automotive Electronics: Backlight for control buttons, indicator lights on dashboards and consoles.
- Industrial Products: Status indicators on electronic instrument panels and control equipment.
- Consumer Electronics: Backlighting for various displays and interfaces in computers, mobile devices, and communication products like routers and TV boxes.
⚙️ Key Technical Specifications
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
|---|---|---|---|---|---|---|
| Luminous Intensity | Iv | 50 | / | 120 | mcd | IF=20mA |
| Dominant Wavelength | λd | 568 | / | 574 | nm | IF=20mA |
| Forward Voltage | VF | 1.8 | / | 2.4 | V | IF=20mA |
| Viewing Angle | 2Ø1/2 | / | 120° | / | deg | IF=20mA |
⚠️ Absolute Maximum Ratings & Process Limits
| Parameter | Symbol | Value | Unit |
|---|---|---|---|
| Max. Continuous Forward Current | IF | 20 | mA |
| Peak Forward Current | IFP | 80 | mA |
| Max. Reverse Voltage | VR | 5 | V |
| Operating Temperature Range | TOPR | -40 to +85 | °C |
| Lead Soldering Temp/Time | TSOL | 260°C / ≤6s | / |
📦 Package, Dimensions & Assembly Notes
The XL-1005SYGC utilizes a standard 0402 (1005 metric) SMD package with dimensions of 1.0x0.5x0.4mm. It is compliant with EIA standard packaging and is fully compatible with automated SMT placement processes. The device is suitable for both leaded and lead-free reflow soldering profiles, with a moisture sensitivity level (MSL) of 3-4, requiring careful handling and baking according to standard SMT procedures before assembly.
🚀 Sourcing & Supply Considerations
For production planning, note the component's brightness and voltage binning options, which allow for precise color and intensity matching. Ensure procurement is through authorized XINGLIGHT channels to guarantee authenticity and access to full technical support and documentation. Always verify MSL status and recommended storage conditions to prevent manufacturing defects due to moisture absorption.
❓ Q: What is the brightness range for the XL-1005SYGC? ❓ A: The LED is available in two brightness grades: D1 (50-80 mcd) and D2 (80-120 mcd) at IF=20mA.
❓ Q: Is this component suitable for lead-free soldering processes? ❓ A: Yes, the XL-1005SYGC is designed to withstand the thermal profiles of both leaded and lead-free (Pb-free) infrared reflow soldering processes.
❓ Q: What is the Moisture Sensitivity Level (MSL) for this SMD LED? ❓ A: The MSL is rated as 3-4, indicating it is sensitive to moisture and requires specific storage and baking conditions before SMT assembly to prevent popcorning.
❓ Q: Can this LED be used in high-temperature automotive environments? ❓ A: Yes, its operating temperature range of -40°C to +85°C makes it suitable for various automotive electronic applications, provided it is operated within its specified electrical limits.
