💡 Key Takeaways • XINGLIGHT 0402 red LED provides 80-240 mcd brightness with 620-630nm wavelength • Compact SMT package (1.0x0.5x0.4mm) suits automotive and industrial applications • Wide operating temperature range (-40 to +85°C) supports harsh environments

🎯 Opening XINGLIGHT 0402 series red LED combines compact surface-mount design with reliable optical performance for automotive and industrial indicator applications. This 0402 package delivers consistent red illumination across various brightness grades while maintaining robust electrical characteristics.

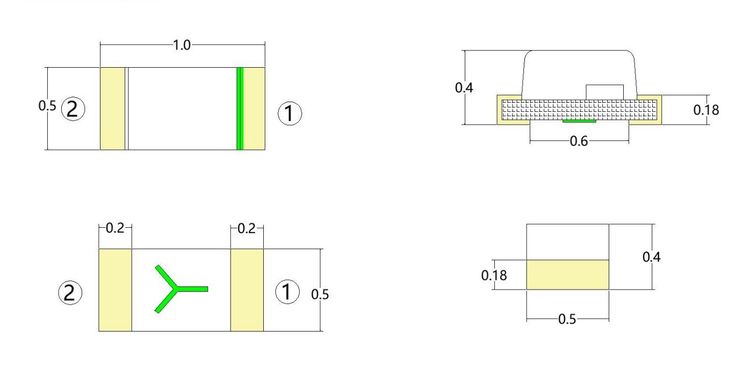

📊 Technical Specifications The LED features a 1.0 x 0.5 x 0.4mm outline dimensions optimized for automated SMT assembly. Optical characteristics include luminous intensity ranging from 80 to 240 mcd at 20mA forward current, with dominant wavelength of 620-630nm and peak at 625nm. Forward voltage operates at 1.9-2.2V, while viewing angle reaches 120° for broad illumination coverage.

🔍 Electrical Performance Maximum power dissipation reaches 50mW with continuous forward current of 20mA and peak pulse current of 60mA. The component handles 5V maximum reverse voltage with 2000V ESD protection. Operating temperature spans -40 to +85°C, matching storage temperature for consistent performance. Reflow soldering at 260°C for up to 6 seconds enables standard assembly processes.

🚀 Application Scenarios Automotive applications include backlight key switches and indicator lights where red signaling is critical. Industrial uses encompass electronic instrument panels and equipment indicators. Consumer electronics integration covers LED backlights and status indicators. Communication products benefit from button illumination on mobile devices, routers, and TV boxes.

✨ Closing XINGLIGHT 0402 provides reliable red LED performance across diverse applications with consistent optical grading and robust environmental tolerance. Reach out to discuss integration support for your specific design requirements.
