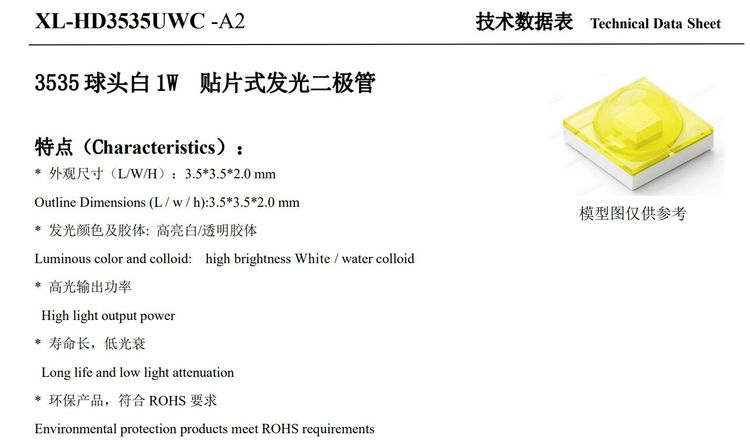

XINGLIGHT XL-HD3535UWC-A2 represents high brightness white LED technology engineered for demanding illumination applications requiring intense light output. This 3535 package delivers 100-150 LM luminous flux at 350 mA, making it suitable for applications where brightness takes priority over warm color characteristics.
The 5500-7500K color temperature range provides cool white illumination with excellent visibility. This spectral output excels in flash and strobe applications where instant high-intensity light is required. The 130-degree viewing angle ensures uniform light distribution across the target area, reducing hot spots and improving coverage.
Package dimensions of 3.5 × 3.5 × 2.0 mm offer compact form factor for space-constrained designs. This 3535 footprint enables integration into mobile device camera modules, flashlight assemblies, and indicator panels without significant board space allocation. Forward voltage of 2.8-3.6 V supports efficient power management in battery-operated devices.
Mobile camera flash applications benefit from the high 100-150 LM output. The XL-HD3535UWC-A2 provides sufficient intensity for low-light photography and video recording. The cool white color temperature ensures accurate color rendering while maintaining flash capability across multiple shots without significant output degradation.
Digital video (DV) flashlight applications leverage the 700 mA peak forward current capability. This allows for short-duration high-intensity bursts when additional illumination is needed for scene recording. The LED's thermal management design supports these peak operation periods while maintaining consistent performance.
Signal and symbol light applications benefit from the high visibility provided by the 5500-7500K cool white output. Industrial equipment status indicators, emergency lighting, and warning systems require maximum attention-getting capability that this LED delivers. The 130-degree viewing angle ensures visibility from multiple angles.
Exterior and interior lighting applications utilize the 100-150 LM output for task lighting, accent lighting, and ambient illumination. The -40°C to +105°C operating temperature range supports automotive exterior lighting where environmental extremes are common. The high brightness output compensates for light loss in diffuse or translucent lighting fixtures.
Decorative and entertainment lighting applications capitalize on the cool white color temperature for modern aesthetic requirements. Stage lighting, architectural features, and retail displays often require high-intensity cool white for dramatic effects and product highlighting. The XL-HD3535UWC-A2's consistent output across the luminous flux grading (K3-K7) enables predictable performance in multi-LED arrays.
Design considerations include thermal management for continuous operation. While the LED supports 350 mA continuous current, the 1000 mW power dissipation requires adequate heat sinking in prolonged use scenarios. The 3000 V electrostatic discharge protection provides robustness during handling and assembly processes.
The MSL (Moisture Sensitivity Level) of 3 requires standard moisture control procedures before soldering. Following the reflow soldering guidelines ensures proper joint formation without compromising LED performance. The 260°C lead soldering temperature limit accommodates standard surface-mount assembly processes.
Applications requiring high brightness output with cool white color characteristics should consider XL-HD3535UWC-A2. The combination of intense luminous flux, compact footprint, and reliable electrical characteristics makes this LED suitable for demanding illumination scenarios across mobile devices, automotive, industrial, and entertainment sectors.
