📌 Product Overview

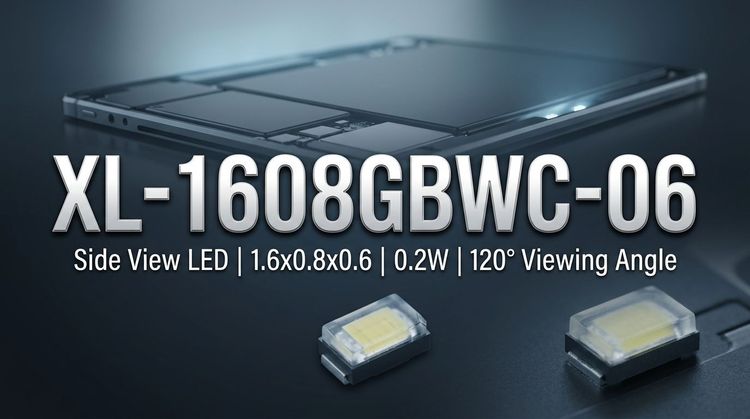

The XL-1608GBWC-06 is a miniature 0603 (1608 metric) surface-mount LED, designed for applications demanding a compact footprint. It emits a distinct ice blue light through a light green epoxy colloid. The device is engineered for seamless integration into automated SMT assembly processes, making it suitable for high-density circuit boards found in modern electronic devices.
💡 Key Features
- Ultra-compact 0603 (1.6x0.8x0.6mm) package
- Ice blue luminous color
- Compliant with RoHS environmental standards
- Optimized for SMT automated production
🚀 Typical Applications
- Medical Equipment: Endoscopes, oximeters
- Automotive Electronics: Backlight for keypads, indicator lights
- Industrial Products: Electronic instrument panels, industrial control equipment
- Smart Home: White goods, Nixie tube LED displays
- Communication Products: Mobile phone button lamps, routers, TV set-top boxes
🔑 Key Technical Specifications
| Parameter | Symbol | Min | Typ | Max | Unit | Test Condition |
|---|---|---|---|---|---|---|
| Luminous Intensity | IV | 500 | - | 1000 | mcd | IF = 20mA |
| Forward Voltage | VF | 2.7 | - | 3.4 | V | IF = 20mA |
| Viewing Angle | 2θ1/2 | - | 120 | - | Deg | IF = 20mA |
| Chromaticity Coordinates | X / Y | - | 0.1800 / 0.2932 | - | - | IF = 20mA |
⚠️ Absolute Maximum Ratings & Process Limits
Parameters must not be exceeded under any operating conditions. Exceeding these values may cause permanent damage to the device.
| Parameter | Symbol | Value | Unit |
|---|---|---|---|
| Max Power Dissipation | PD | 75 | mW |
| Max Continuous Forward Current | IF | 20 | mA |
| Max Peak Forward Current | IFP | 80 | mA |
| Max Reverse Voltage | VR | 5 | V |
| Operating Temperature | TOPR | -40 to +85 | °C |
| ESD Protection | ESD | 2000 | V |
| Soldering Temp/Time | TSOL | 260°C ≤ 6s | °C/s |
📏 Package, Dimensions & Assembly Notes
- Package Type: 0603 (1608 metric) SMD
- Outline Dimensions (L/W/H): 1.6 x 0.8 x 0.6 mm
- Moisture Sensitivity Level (MSL): 3
- Packaging: Complies with EIA standard for tape and reel.
- Assembly: Suitable for standard SMT reflow processes. Follow recommended soldering profiles to prevent thermal damage. The device has a light green epoxy colloid.
📦 Sourcing & Supply Considerations
- Supply Chain: Ensure procurement from authorized XINGLIGHT distributors or direct channels to guarantee authenticity.
- Production: Standard EIA packaging supports automated placement, minimizing production bottlenecks.
- Alternatives: Verify electrical and optical parameters (VF, IV, color) when considering cross-referencing components for BOM stability.
- Support: Engage with technical support for volume quotations and sample requests to validate performance in your specific application.
❓ FAQ
Q: What is the brightness binning for the XL-1608GBWC-06?
A: The luminous intensity is graded from E4 (500-550 mcd) to E9 (900-1000 mcd) at IF=20mA, with a brightness tolerance of ±10%.
Q: What are the soldering recommendations for this LED?
A: The recommended peak soldering temperature is 260°C for a maximum of 6 seconds. For IR reflow, the peak temperature should not exceed 235°C for lead-free processes or 255°C for leaded processes, adhering to J-STD-020C profiles.
Q: Is the XL-1608GBWC-06 suitable for automotive applications?
A: While the LED's operating temperature range (-40°C to +85°C) is suitable for many automotive environments, formal qualification to specific automotive standards (e.g., AEC-Q102) would need to be confirmed with the manufacturer for critical applications.
Q: What does the MSL 3 rating mean for production?
A: MSL 3 indicates the component is moisture-sensitive and requires baking before soldering if exposed to factory floor conditions for more than a specified time (typically 168 hours at 30°C/85% RH), per JEDEC standards.
Q: Can I use this LED for pulse drive applications?
A: Yes, the device can handle a peak forward current (IFP) of 80 mA, but the pulse width must be ≤0.1ms with a duty cycle ≤1/10. Continuous operation should not exceed the maximum rated forward current of 20 mA.
Q: What is the color consistency like for this ice blue LED?
A: The chromaticity coordinates (X/Y) have a tight tolerance of ±0.01, ensuring consistent color appearance across different production batches.
