📌 Product Overview

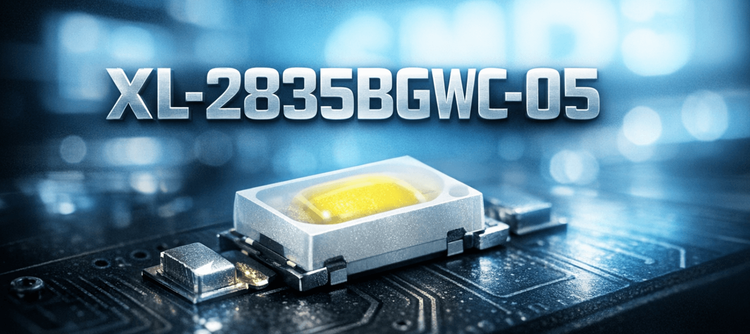

The XL-2835BGWC-05 is a specialized Surface Mount Device (SMD) LED designed by XINGLIGHT for high-efficiency illumination. 💡 Housed in a compact 2.8x3.5x0.8mm package, this component features an ice blue luminous color with a light yellow colloid, making it ideal for dense array assemblies. 👇 It is engineered to support automated SMT production lines and infrared reflow soldering processes, ensuring seamless integration into modern manufacturing workflows. Designers should focus on its high forward current capability and thermal management requirements to maximize luminous efficacy in end products.
🚀 Typical Applications
Based on its optical characteristics and robust power ratings, the XL-2835BGWC-05 is suitable for a wide range of illumination tasks:
- Indoor Lighting: 💡 High-intensity fluorescent tubes, light strips, and recessed downlights.
- Commercial Signage: ✨ Advertising words and light boxes requiring uniform ice blue backlighting.
- Consumer Electronics: LCD backlights for display panels and indicators.
- Decorative Lighting: Flexible light strips for ambient lighting effects and accent decor.
📈 Key Technical Specifications
The following table outlines the critical optoelectronic parameters under standard test conditions (Ta=25°C). These values are essential for determining the component's performance window and suitability for specific design targets.
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Conditions |
|---|---|---|---|---|---|---|
| Luminous Intensity | Φ | 33 | - | 52 | LM | IF=150mA |
| Forward Voltage | VF | 2.8 | - | 3.4 | V | IF=150mA |
| Viewing Angle | 2θ1/2 | - | 120 | - | Deg | IF=150mA |
| Reverse Current | Ir | - | - | 5 | μA | VR=5V |
| Chromaticity (x) | X | - | 0.18 | - | - | IF=150mA |
| Chromaticity (y) | Y | - | 0.16 | - | - | IF=150mA |
🔒 Absolute Maximum Ratings & Process Limits
To ensure long-term reliability and prevent catastrophic failure, designers must strictly adhere to these absolute maximum ratings. Exceeding these limits, even momentarily, can cause permanent damage to the LED junction.
| Parameter | Symbol | Max. Value | Unit | Notes |
|---|---|---|---|---|
| Max Power Dissipation | PD | 500 | mW | - |
| Max Continuous Forward Current | IF | 150 | mA | - |
| Peak Forward Current | IFP | 300 | mA | Pulse ≤0.1ms, Duty ≤1/10 |
| Max Reverse Voltage | VR | 5 | V | - |
| ESD Ability | ESD | 2000 | V | Human Body Model (HBM) |
| Operating Temperature | TOPR | -40 ~ +85 | °C | - |
| Storage Temperature | TSTR | -40 ~ +85 | °C | - |
| Soldering Temp/Time | TSOL | 260 | °C | ≤6 Seconds |
🏗️ Package, Dimensions & Assembly Notes
The XL-2835BGWC-05 features a standard 2835 footprint with precise dimensions of 2.8mm (L) x 3.5mm (W) x 0.8mm (H). 👇 This low-profile height allows for installation in space-constrained applications like thin light strips. The component utilizes a light yellow colloid to enhance light transmission and color mixing.
- Soldering Guidelines: The device is rated for a Moisture Sensitivity Level (MSL) of 3. 🔒 It is compatible with both lead-free and leaded infrared reflow soldering processes.
- Lead-Free: Peak temp 255°C, time above 217°C: 60-120s.
- Leaded: Peak temp 235°C, time above 183°C: 60-150s.
- Packaging: Supplied in EIA standard compliant tape and reel formats, facilitating high-speed SMT pick-and-place automation.
📦 Sourcing & Supply Considerations
When integrating the XL-2835BGWC-05 into production, supply chain consistency is critical.
- Bin Selection: Verify specific Brightness (J4-J6) and Voltage (N13-3 to N13-5) bin codes to ensure uniformity across batches.
- Quality Assurance: 💡 Confirm compliance with ROHS directives and request reliability test data (e.g., 1000h operating life) for high-volume orders.
- Authenticity: Always source through authorized channels to guarantee correct handling of MSL 3 moisture sensitivity standards.
❓ FAQ
Q: What is the maximum current I can drive the XL-2835BGWC-05 with continuously? A: The Absolute Maximum Rating for continuous forward current is 150 mA. While pulse currents can reach 300 mA, you must ensure the average current does not exceed 150 mA to avoid thermal overstress.
Q: What does the Moisture Sensitivity Level (MSL) 3 mean for my assembly process? A: MSL 3 means the components must be mounted within 168 hours (1 week) of opening the vacuum-sealed bag. If floor life exceeds this, you must bake the components according to J-STD-033 standards to prevent popcorning damage during reflow.
Q: Can I use a standard lead-free reflow profile for this LED? A: Yes, the datasheet explicitly supports lead-free processes. The peak temperature should not exceed 255°C, and the time above 217°C should be strictly controlled between 60 to 120 seconds.
Q: What is the typical forward voltage range I should design my driver for? A: At 150 mA, the forward voltage ranges from 2.8V to 3.4V. Design your driver circuit to accommodate this range, typically targeting the median (around 3.1V) for optimal efficiency.
Q: How is the brightness sorted for this model? A: Brightness is sorted into specific codes: J4 (33-39 lm), J5 (39-45 lm), and J6 (45-52 lm). Ensure you specify the required bin code when purchasing to maintain consistent brightness across your lighting product.
