📌 Product Overview

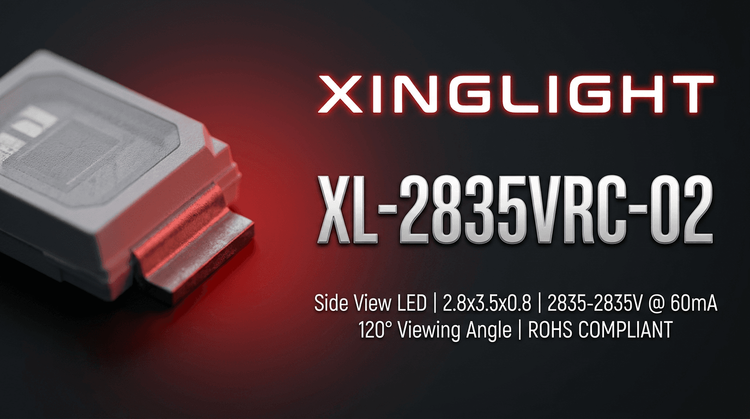

The XL-2835VRC-02 from XINGLIGHT is a high-performance surface-mount device (SMD) designed for compact lighting solutions. 💡 It features a 2.8x3.5x0.8mm package with a pinkish-red light output and red colloid, specifically engineered to meet ROHS environmental standards. 👇 This component is ideal for engineers requiring a balance of luminous intensity and space efficiency, offering a reliable solution for modern indoor and commercial illumination systems. ✨
🚀 Typical Applications
Based on its optical characteristics and form factor, the XL-2835VRC-02 is suitable for a wide range of uses:
- Indoor Lighting: 💡 Optimized for fluorescent tubes, light strips, and downlights where consistent color rendering is key.
- Commercial Display: 👇 Effective for advertising words and light boxes, providing high visibility.
- Backlighting: ✨ Used in LCD backlights for uniform illumination.
- Decorative Lighting: 🌈 Flexible light strips that require bendable, reliable components.
📊 Key Technical Specifications
The following table outlines the critical optical and electrical parameters (Ta=25℃):
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Conditions |
|---|---|---|---|---|---|---|
| Luminous Intensity | Φ | 8 | - | 13 | LM | IF = 60mA |
| Dominant Wavelength | λd | 620 | - | 630 | nm | IF = 60mA |
| Forward Voltage | VF | 3.0 | - | 3.4 | V | IF = 60mA |
| Viewing Angle | 2Ø1/2 | - | 120° | - | deg | IF = 60mA |
| Reverse Current | IR | - | - | ≤5 | μA | VR = 5V |
💡 Note: Grading codes are available for brightness (H6/H7), voltage (M19-3 to M19-6), and wavelength (HR02/HR03).
🔒 Absolute Maximum Ratings & Process Limits
To ensure reliability and prevent failure, designers must strictly adhere to these limits (Ta=25℃):
| Parameter | Symbol | Max. Value | Unit | Notes |
|---|---|---|---|---|
| Max Power Dissipation | PD | 200 | mW | - |
| Max Continuous Forward Current | IF | 60 | mA | - |
| Peak Forward Current | IFP | 150 | mA | Pulse ≤0.1ms, Duty ≤1/10 |
| Max Reverse Voltage | VR | 5 | V | - |
| ESD Ability | ESD | 2000 | V | Human Body Model (HBM) |
| Operating Temperature | TOPR | -40 ~ +85 | °C | - |
| Storage Temperature | TSTR | -40 ~ +85 | °C | - |
⚠️ Warning: Exceeding these values, particularly the junction temperature during high-current operation, can permanently degrade the LED.
🏗️ Package, Dimensions & Assembly Notes
- Dimensions: The compact outline measures 2.8mm (L) x 3.5mm (W) x 0.8mm (H).
- Moisture Sensitivity: 🌧️ The component is classified as MSL Level 3. Ensure proper baking before reflow if exposed to ambient moisture.
- Soldering: Designed for infrared reflow processes.
- Lead-Free: Peak 255°C (Time above 217°C: 60-120s).
- Lead Process: Peak 235°C (Time above 183°C: 60-150s).
- Assembly: Compatible with standard EIA packaging and SMT automated production lines.
📦 Sourcing & Supply Considerations
- Procurement: Verify authenticity through authorized XINGLIGHT channels to avoid counterfeit components.
- Samples: 👇 Request specific binning codes (H6/H7, HR02/HR03) during the sampling phase to match your color consistency requirements.
- Volume: Confirm stock availability for the M19-3 to M19-6 voltage bins to ensure driver compatibility.
- Technical Support: 🚀 Consult factory representatives for detailed reliability test data (MIL-STD-750D/883D) regarding high-temperature storage and soldering limits.
❓ FAQ
Q: What is the MSL level of the XL-2835VRC-02? A: The moisture sensitivity level is 3. This means the components must be mounted within 168 hours (1 week) of opening the vacuum-sealed bag. If floor life is exceeded, baking is required to prevent popcorning damage during reflow.
Q: Can this LED be used at 60mA continuously? A: Yes, the datasheet specifies 60mA as the Max Continuous Forward Current. However, thermal management is critical. Ensure the PCB has sufficient copper area to dissipate heat, keeping the junction temperature within the -40°C to +85°C operating range.
Q: What is the difference between the H6 and H7 brightness codes? A: These are brightness (luminous intensity) bins. H6 covers 8-10 Lumens, while H7 covers 10-13 Lumens (at 60mA). Selecting the correct bin ensures uniform brightness across your light fixture.
Q: Is the XL-2835VRC-02 compatible with lead-free soldering? A: Yes, it is suitable for both lead and lead-free processes. For lead-free soldering, the peak temperature should not exceed 255°C, with specific time constraints maintained above 217°C (60-120 seconds).
Q: What does the "HR02" and "HR03" marking mean? A: These refer to the Dominant Wavelength bins. HR02 is 620-625nm, and HR03 is 625-630nm. Using a single bin code in a production batch is essential for visual color consistency in the final product.
