📌 Product Overview

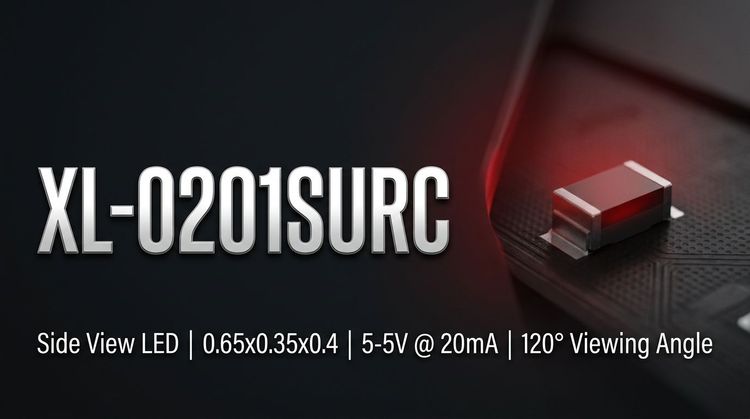

The XL-0201SURC is a ultra-compact surface-mount LED (0.65x0.35x0.4mm) featuring high-brightness red emission (615-630 nm) in a transparent package. Designed for miniaturized electronics, it supports automated SMT placement and reflow soldering processes. Key applications include status indicators, LCD backlights, and next-gen devices in AI, IoT, and wearables, where space efficiency and optical performance are critical.
💡 Typical Applications
- Signal indicators for 3C electronics (computers, communications, consumer devices)
- LCD backlighting for compact displays
- Status LEDs in AI and IoT modules
- Integration into smart wearable devices
- Miniaturized industrial control systems
🔍 Key Technical Specifications
| Parameter | Symbol | Min | Typ | Max | Unit | Test Condition |
|---|---|---|---|---|---|---|
| Luminous Intensity | Iv | 120 | - | 240 | mcd | IF=20mA |
| Dominant Wavelength | λd | 615 | - | 630 | nm | IF=20mA |
| Forward Voltage | VF | 1.7 | - | 2.3 | V | IF=20mA |
| Viewing Angle | 2Ø1/2 | - | 120° | - | deg | IF=20mA |
| Reverse Current | IR | - | - | ≤1 | μA | VR=5V |
⚠️ Absolute Maximum Ratings & Process Limits
| Parameter | Symbol | Value | Unit |
|---|---|---|---|
| Max Power Dissipation | PD | 50 | mW |
| Max Continuous Forward Current | IF | 20 | mA |
| Peak Forward Current | IFP | 60 | mA |
| Max Reverse Voltage | VR | 5 | V |
| Operating Temperature | TOPR | -40 to +85 | °C |
| Reflow Soldering | TSOL | 260°C ≤6s | - |
📏 Package, Dimensions & Assembly Notes
- Dimensions: 0.65x0.35x0.4mm (L/W/H)
- Package Type: Transparent epoxy colloid
- MSL Rating: 3 (requires moisture protection)
- Assembly: Compatible with SMT mounters and IR reflow (lead-free/leaded profiles)
- ESD Protection: 2000 V rating for handling safety
🚀 Sourcing & Supply Considerations
- Available in brightness (D3-D6) and voltage (N11-3 to N11-5) bins for consistency
- ROHS-compliant and EIA-standard packaging for traceability
- Ideal for high-volume production with automated assembly support
- Verify authenticity through authorized XINGLIGHT distributors
❓ FAQ
Q: What is the brightness tolerance for the XL-0201SURC?
A: Brightness tolerance is ±10% (e.g., 120-150 mcd for D3 bin at IF=20mA).
Q: Is this LED suitable for lead-free reflow soldering?
A: Yes, it supports both leaded (260°C ≤6s) and lead-free reflow profiles.
Q: Can the XL-0201SURC be used in high-temperature environments?
A: Yes, its operating temperature range is -40°C to +85°C.
Q: How does wavelength binning work for this LED?
A: Wavelength is graded in 5nm increments (e.g., HR01: 615-620nm) with ±1nm tolerance.
Q: What is the ESD rating for handling?
A: The LED has an ESD rating of 2000 V, requiring standard ESD precautions.
Q: Is this component suitable for AI/IoT devices?
A: Yes, its compact size and reliability make it ideal for signal indicators in AI and IoT applications.
```
