📌 Product Overview

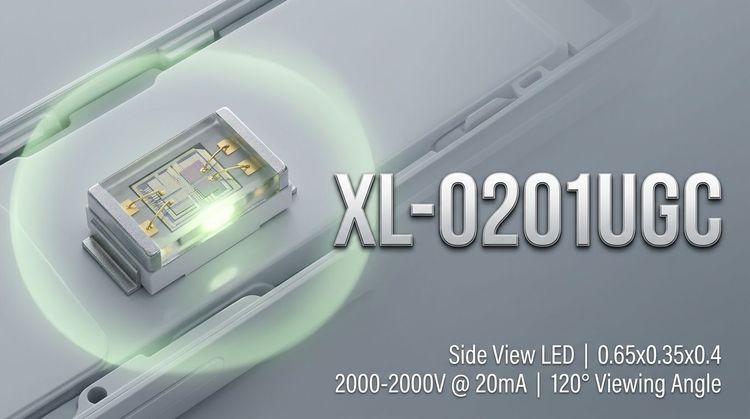

The XL-0201UGC is a high-brightness green SMD LED from XINGLIGHT, designed for ultra-compact applications. With dimensions of 0.65x0.35x0.4mm, it integrates seamlessly into space-constrained designs. Ideal for signal indication, LCD backlighting, and advanced electronics like AI and IoT devices, this LED prioritizes miniaturization without compromising performance.
🚀 Typical Applications
- Signal indication
- LCD backlight
- 3C products (computers, communications, consumer electronics)
- Artificial intelligence systems
- Internet of Things (IoT) devices
- Smart wearables
🔧 Key Technical Specifications
| Parameter | Symbol | Min/Typ/Max | Unit | Test Condition |
|---|---|---|---|---|
| Luminous Intensity | Iv | 600/1300 | mcd | IF=20mA |
| Dominant Wavelength | λd | 515/530 | nm | IF=20mA |
| Peak Wavelength | λp | /525/ | nm | IF=20mA |
| Forward Voltage | VF | 2.6/3.4 | V | IF=20mA |
| Viewing Angle | 2Ø1/2 | /120°/ | deg | IF=20mA |
⚠️ Absolute Maximum Ratings & Process Limits
| Parameter | Symbol | Value | Unit |
|---|---|---|---|
| Max Power Dissipation | PD | 70 | mW |
| Max Continuous Forward Current | IF | 20 | mA |
| Peak Forward Current | IFP | 80 | mA |
| Max Reverse Voltage | VR | 5 | V |
| Operating Temperature | TOPR | -40~+85 | °C |
| Soldering Temp/Time | TSOL | 260°C≤6s | / |
📦 Package, Dimensions & Assembly Notes
- Package: 0201 ultra-compact (0.65x0.35x0.4mm)
- Moisture Sensitivity Level (MSL): 3
- Compatible with automatic SMT placement and reflow soldering
- EIA-standard packaging for precise handling
📈 Sourcing & Supply Considerations
- Brightness/voltage/wavelength binning available for consistency
- ROHS-compliant and suitable for high-volume production
- Verify authenticity through authorized XINGLIGHT distributors
❓ FAQ
Q: What is the brightness grading range?
A: Ranges from E6 (600 mcd) to F2 (1300 mcd) with ±10% tolerance.
Q: Is this LED suitable for reflow soldering?
A: Yes, designed for IR-reflow processes with max temp 260°C (≤6s).
Q: What is the ESD rating?
A: 2000V, ensuring robust handling in automated assembly.
Q: Can it be used in automotive applications?
A: Operating temp (-40~+85°C) supports many automotive, but verify specific AEC-Q needs.
Q: What are the main wavelength options?
A: HG02 (515-520nm), HG03 (520-525nm), HG04 (525-530nm) with ±1nm tolerance.
Q: How does the MSL 3 rating affect storage?
A: Requires baking and dry packing to prevent moisture damage before assembly.
