📌 Product Overview

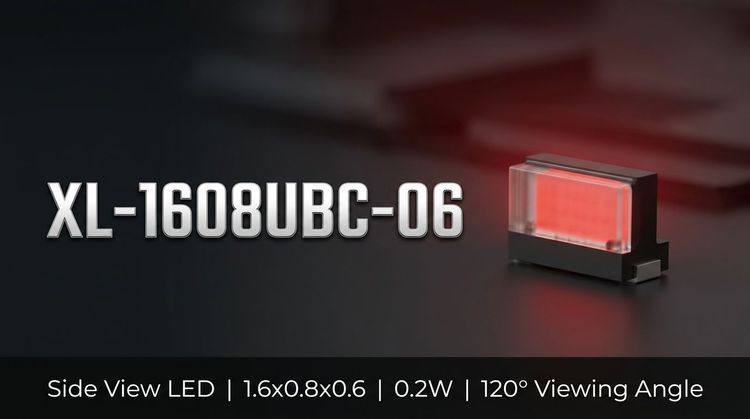

The XL-1608UBC-06 is a miniature 0603 (1.6x0.8x0.6mm) surface-mount LED, designed for high-density PCB assembly. Its blue luminous output and transparent epoxy colloid make it suitable for applications requiring compact, reliable indicators. The device is engineered for seamless integration into automated SMT production lines, featuring low power consumption and a wide 120° viewing angle, making it ideal for space-constrained electronic designs.
🔧 Typical Applications
- Medical Equipment: Endoscopes, oximeters
- Automotive Electronics: Backlight key lights, indicator lights
- Industrial Products: Electronic instrument panels, industrial equipment
- Smart Home: White appliances, nixie tube LEDs
- Communication Products: Mobile phone button lamps, routers
📊 Key Technical Specifications
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
|---|---|---|---|---|---|---|
| Luminous Intensity | Iv | 80 | / | 210 | mcd | IF=20mA |
| Dominant Wavelength | λd | 455 | / | 475 | nm | IF=20mA |
| Peak Wavelength | λp | / | 465 | / | nm | IF=20mA |
| Forward Voltage | VF | 2.6 | / | 3.4 | V | IF=20mA |
| Viewing Angle | 2Ø1/2 | / | 120° | / | deg | IF=20mA |
⚠️ Absolute Maximum Ratings & Process Limits
| Parameter | Symbol | Value | Unit |
|---|---|---|---|
| Max Power Dissipation | PD | 70 | mW |
| Max Continuous Forward Current | IF | 20 | mA |
| Max Peak Forward Current | IFP | 80 | mA |
| Max Reverse Voltage | VR | 5 | V |
| Operating Temperature Range | TOPR | -40 to +85 | °C |
| Moisture Sensitivity Level (MSL) | MSL | 3 | |
| Soldering Temperature/Time | TSOL | 260°C / ≤6s |
📦 Package, Dimensions & Assembly Notes
The XL-1608UBC-06 utilizes a standard 0603 SMD package with outline dimensions of 1.6x0.8x0.6mm. It is compliant with EIA standard packaging for automated handling. The component is suitable for standard SMT reflow processes, with a recommended peak soldering temperature of 260°C for a duration not exceeding 6 seconds. The MSL rating of 3 necessates standard moisture control handling procedures before soldering.
🚀 Sourcing & Supply Considerations
- Binning: Available in brightness (D2-D5) and voltage (M18-8 to M19-6) grades for consistent performance.
- Authenticity: Source only from authorized XINGLIGHT distributors to guarantee quality and RoHS compliance.
- Supply Chain: Verify lead times and stock availability for high-volume production planning.
❓ FAQ
Q: What is the brightness range of the XL-1608UBC-06?
A: The LED is graded from D2 (80-120 mcd) to D5 (180-210 mcd) at IF=20mA.
Q: Is this LED suitable for automotive applications?
A: Yes, it is suitable for automotive uses like backlight key lights and indicators, though specific automotive qualification (e.g., AEC-Q102) should be verified.
Q: What is the recommended soldering profile?
A: The recommended peak soldering temperature is 260°C, with a dwell time of ≤6 seconds, following standard SMT reflow profiles.
Q: What is the Moisture Sensitivity Level (MSL)?
A: The MSL is 3, requiring standard bake and dry packaging procedures before reflow soldering to prevent popcorning.
Q: What standards does this product comply with?
A: The XL-1608UBC-06 is RoHS compliant and packaged according to EIA standards.
Q: Can this LED be used in high-temperature environments?
A: Yes, its operating temperature range is -40°C to +85°C, making it suitable for various industrial and automotive applications.
