📌 Product Overview

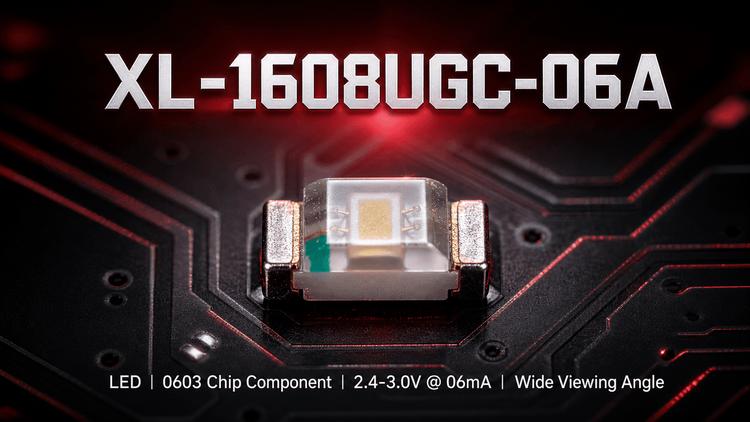

The XL-1608UGC-06A is a standard 0603 (1608 metric) SMD Green LED designed for general indication and backlighting purposes. As a water-clear, diffuse component with a wide 130° viewing angle, it is tailored for applications requiring uniform light distribution rather than focused intensity. For engineering teams, the critical selection variables are the 2.4-3.0V forward voltage range and brightness grading (550-1450 mcd), which dictate drive circuit design and visual consistency. It is a versatile choice for high-density signal indicator arrays in consumer and industrial devices.
🎯 Typical Applications & Design Context
Based on its luminous intensity (550–1450 mcd) and compact 0603 footprint, this component is best suited for:
- Status Indicators: Ideal for router LEDs, modem status lights, and white appliance panels where board space is premium.
- Automotive Interior: Specified for dashboard backlighting and button illumination (non-critical interior).
- Industrial & Medical: Suitable for electronic instrument panels and oximeter indicators, provided strict binning controls are applied during procurement to ensure color consistency.
💡 Design Insight: Its low power consumption makes it ideal for battery-operated devices, but engineers must account for the Max Forward Current (30mA) limit in power surge scenarios.
📊 Key Technical Specifications
| Parameter | Symbol | Test Conditions | Min / Typ / Max | Unit |
|---|---|---|---|---|
| Luminous Intensity | Iv | IF = 20mA | 550 / - / 1450 | mcd |
| Forward Voltage | VF | IF = 20mA | 2.4 / - / 3.0 | V |
| Dominant Wavelength | λd | IF = 20mA | 515 / - / 530 | nm |
| Viewing Angle | 2Ø1/2 | IF = 20mA | - / 130° / - | deg |
| Reverse Voltage | VR | IR = ≤1μA | - / - / 5 | V |
✨ Note: The wide range in luminous intensity (E5 to F3 bins) necessitates specific bin selection during mass production to avoid visible brightness variations on the same panel.
⚠️ Absolute Maximum Ratings & Process Limits
| Parameter | Symbol | Max Value | Unit | Failure Consequence (E-E-A-T Insight) |
|---|---|---|---|---|
| Max Forward Current | IF | 30 | mA | Exceeding this causes rapid thermal runaway and bond wire failure. |
| Peak Pulse Current | IFP | 80 | mA | ⚠️ Failure Risk: Pulse width ≤0.1ms required. Longer pulses will melt the plastic encapsulant. |
| ESD Tolerance | ESD | 2000 | V | 💡 Process Risk: MSL Level 3 requires strict baking (dry baking) before reflow to prevent "popcorning" or internal delamination. |
| Storage Temp | TSTR | -40 ~ +85 | °C | Storage outside this range degrades the phosphor/epoxy, shifting the Green wavelength (λd). |
| Soldering Temp | TSOL | 260 | °C | ⚠️ Limit: Max 6 seconds. Hand soldering beyond this time lifts the electrodes. |
🧩 Package, Dimensions & Assembly Notes
- Package: 1608 Metric (Imperial 0603).
- Dimensions (LxWxH): 1.6 x 0.8 x 0.6 mm.
- SMT Compatibility: Designed for standard automated pick-and-place.
- Soldering Profile: Supports both Lead (Max 235°C) and Lead-free (Max 260°C) reflow profiles.
- 👇 Technical Tip: The datasheet specifies a ramp rate of max 3°C/sec. Rapid heating (>3°C/sec) can cause thermal shock to the ceramic substrate, leading to micro-cracks in the die.
🔍 Procurement & Sourcing Insights
- 🚀 Supply Chain: XINGLIGHT follows EIA standard packaging, ensuring compatibility with universal taping systems.
- 🔒 Quality Control: Procurement teams must strictly enforce Brightness Binning (E5-F3) and Voltage Binning (M18-6 to M19-2) codes. Mixing bins from different batches will result in uneven backlighting on the final product.
- ⚠️ Availability: As a standard commercial-grade LED, lead times are generally stable, but moisture sensitivity (MSL 3) means local warehouse storage conditions must be verified to prevent yield loss during SMT.
❓ FAQ
Q1: Can I drive this LED at 30mA continuously?
A: While the datasheet lists 30mA as the Absolute Maximum, it is not recommended for continuous operation in a sealed enclosure without thermal derating. Operating at the 20mA typical rating ensures longer lifespan and stable wavelength output.
Q2: What is the risk of ignoring the MSL Level 3 rating?
A: MSL 3 means the component is sensitive to moisture. If you skip the pre-baking process before reflow, moisture inside the LED will expand rapidly due to high heat, causing internal cracking (popcorning) or delamination. This leads to immediate failure or dim LEDs in the field.
Q3: How does the "Water White" transparency affect the design?
A: Water clear means the LED is un-diffused when off, appearing clear. When lit, it provides a wide 130° viewing angle. If you need a diffused look (where the LED looks cloudy when off), you must specify a different diffused lens or add an external light guide.
Q4: Are there footprint concerns for the 1608 (0603) package?
A: The 1608 footprint is standard. However, during the "Anti-tin test" (Solderability), ensure your pad design follows the recommended land pattern in the datasheet. Too much solder can cause the component to "tombstone" (stand up on one end) during reflow due to uneven surface tension.
