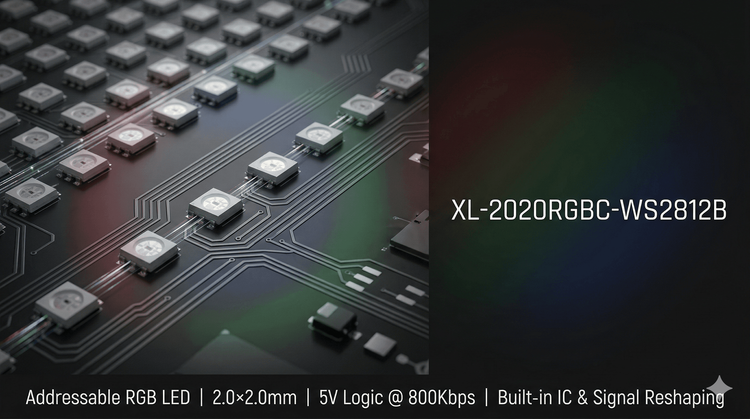

💡 Product Overview The XL-2020RGBC-WS2812B is a 2.0×2.0mm integrated RGB LED with a built-in single-wire control IC, designed for digitally addressable lighting systems. It combines RGB emitters with constant-current drivers and signal reshaping logic in a compact SMD package.
For design teams, the real focus is not brightness, but signal integrity across cascades, timing tolerance, and SMT process compatibility in high-density layouts.
🚀 Typical Applications Addressable LED strips and pixel lighting systems LED display modules and irregular (creative) screens Architectural and ambient lighting requiring dynamic color control Consumer electronics indicators and decorative lighting Automotive interior ambient lighting (low-power zones) Programmable signage and animation lighting chains
These applications rely heavily on data cascade reliability and consistent color output across large node counts.
📊 Key Technical Specifications Parameter Value Package Size 2.0 × 2.0 × 0.65 mm Supply Voltage 3.5 – 5.5 V Data Transmission Rate 800 Kbps PWM Frequency 1.5 kHz Grayscale 256 levels Drive Current ~5 mA per channel Viewing Angle 120° Wavelength (R/G/B) 620–630 / 520–530 / 465–475 nm Luminous Intensity R: 50–150 mcd, G: 200–400 mcd, B: 50–150 mcd
Engineering Insight: The relatively low 5 mA/channel current prioritizes thermal density and cascade scalability, not peak brightness—this impacts visibility in high ambient light environments.
⚠️ Absolute Maximum Ratings & Process Limits Parameter Limit Supply Voltage 3.5 – 5.5 V Operating Temperature -40 to +85°C Storage Temperature -40 to +85°C Reflow Temperature 260°C / 6s max ESD Protection 2000V HBM Output Withstand Voltage 13 V
Critical Design Note:
The device includes internal signal reshaping, but timing margins (Tin0h <0.47µs, Tin1h >0.58µs) must be strictly maintained. Reset time ≥80µs is mandatory for data latching.
Failure to meet these constraints is a common root cause of cascade instability.
📦 Package, Dimensions & Assembly Notes Package: 2020 SMD with integrated IC Dimensions: 2.0 × 2.0 mm footprint, 0.65 mm height 4-pin layout: VDD / GND / DI / DO Moisture Sensitivity Level: MSL 5 Recommended soldering: Peak: 240 ±5°C (Pb-free) Max 2 reflow cycles within 8 hours Storage after opening: ≤24 hours at ≤40% RH
Assembly Insight:
MSL 5 requires strict moisture control—baking (60°C/24h) may be required before reflow. Mechanical stress during reflow can damage internal bonding wires. 🔗 Sourcing & Supply Considerations Widely available in multiple ecosystem-compatible variants, but binning consistency (RGB balance) is not always standardized. Verify IC timing compatibility when cross-sourcing WS2812B equivalents. Reel packaging and MSL handling conditions directly impact yield in SMT lines. For large-scale projects, pre-validation of cascade length vs. controller capability is essential. ❓ FAQ
Q1: What limits the maximum cascade length? A: Signal integrity and timing margins—not just power. The 800 Kbps protocol and reshaping help, but long chains require careful resistor tuning and decoupling.
Q2: Is it fully compatible with standard WS2812B drivers? A: Generally yes, but timing tolerances and reset thresholds must be verified, especially across vendors.
Q3: Why is brightness lower than some 5050 RGB LEDs? A: The 2020 package prioritizes density and thermal management, using ~5 mA/channel instead of higher drive currents.
Q4: What is the main SMT risk? A: Moisture sensitivity (MSL 5) and reflow stress. Improper storage or excessive thermal cycles can cause latent failures.
Q5: Are external components required? A: Yes—decoupling capacitors and series resistors (typically ~500Ω) are strongly recommended for stable cascade operation.
