ð Product Overview

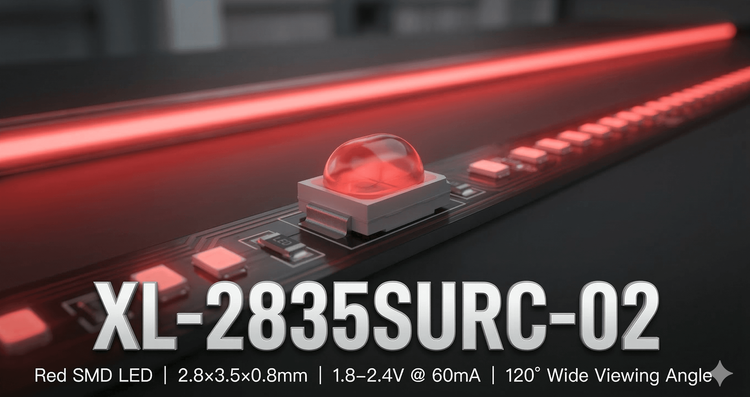

The XL-2835SURC-02 is a high-performance Red SMD LED manufactured by XINGLIGHT. ðĄ Housed in a compact 2.8mm x 3.5mm x 0.8mm package with a water-clear colloid, it is designed to deliver robust luminous intensity. This component is specifically engineered for Surface Mount Technology (SMT) automated production lines, supporting efficient infrared reflow soldering processes. It is an ideal choice for engineers requiring a balance of brightness and space efficiency.
ð Typical Applications
This versatile component is widely utilized across various lighting segments. ð Key application scenarios include:
- Indoor Lighting: Fluorescent tubes, light strips, and downlights.
- Commercial Display: Illuminated advertising words and light boxes.
- Backlighting: LCD backlight sources.
- Decorative Lighting: Flexible light strips requiring consistent color output.
âïļ Key Technical Specifications
The following table outlines the optoelectrical performance under standard test conditions (Ta=25â). ð Designers should pay close attention to the Dominant Wavelength and Luminous Intensity to ensure visual consistency.
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Conditions |
|---|---|---|---|---|---|---|
| Luminous Intensity | Iv | 550 | - | 900 | mcd | IF = 60 mA |
| Dominant Wave Length | Îŧd | 620 | - | 630 | nm | IF = 60 mA |
| Peak Wave Length | Îŧp | - | 625 | - | nm | IF = 60 mA |
| Forward Voltage | VF | 1.8 | - | 2.4 | V | IF = 60 mA |
| Viewing Angle | 2Ã1/2 | - | 120° | - | deg | IF = 60 mA |
| Reverse Current | IR | - | - | âĪ 5 | ΞA | VR = 5 V |
â ïļ Absolute Maximum Ratings & Process Limits
Exceeding these values may cause permanent damage to the device. ð To ensure reliability, strict adherence to the electrical and thermal stress limits below is mandatory during circuit design and operation.
| Parameter | Symbol | Max. Value | Unit | Notes |
|---|---|---|---|---|
| Max Power Dissipation | PD | 200 | mW | - |
| Max Continuous Forward Current | IF | 60 | mA | - |
| Peak Forward Current | IFP | 150 | mA | Pulse width âĪ0.1ms, Duty âĪ1/10 |
| Max Reverse Voltage | VR | 5 | V | - |
| ESD Ability | ESD | 2000 | V | Antistatic ability |
| Operating Temperature | TOPR | -40 ~ +85 | â | - |
| Storage Temperature | TSTR | -40 ~ +85 | â | - |
| Soldering Temp/Time | TSOL | 260 | â | âĪ 6 Seconds |
ðĶ Package, Dimensions & Assembly Notes
The XL-2835SURC-02 features an outline dimension of 2.8x3.5x0.8mm, making it suitable for high-density arrays. âĻ It utilizes EIA standard packaging and is fully compatible with SMT automatic production and infrared reflow soldering.
Soldering Guidelines:
- With Lead Process: Max temp 235â (+5/-0â) for 10-15s.
- Lead-Free Process: Max temp 255â (+0/-5â) for 5-10s.
- Cooling Rate: Max 6â/second to prevent thermal shock.
ð Sourcing & Supply Considerations
When integrating the XL-2835SURC-02 into your BOM, consider the following supply chain factors:
- Bin Selection: Verify specific brightness (E5-E8) and voltage (N12-7/8/9) grades to match your driver design.
- Authenticity: Source exclusively through authorized channels to guarantee ROHS compliance and MSL 3 ratings.
- Samples: Request samples prior to mass production to validate color binning and intensity in your specific optical assembly.
â FAQ
Q: What is the MSL level of the XL-2835SURC-02?
A: The moisture sensitivity level is MSL 3. This means the components can withstand floor life of up to 168 hours (one week) at 30â/60% RH after opening the vacuum-sealed bag before baking is required.
Q: Can this LED be used with a lead-free soldering process?
A: Yes, it is suitable for both leaded and lead-free infrared reflow processes. For lead-free, the peak temperature should not exceed 255â for 5-10 seconds.
Q: What does the "Water Clear Colloid" specification mean?
A: It refers to the transparent epoxy encapsulation. This ensures minimal light absorption and refraction, allowing the raw red light output to pass through efficiently.
Q: How is the brightness graded?
A: Brightness is divided into codes E5 through E8, ranging from 550 mcd to 900 mcd. Ensure you specify the required bin code to maintain uniformity in your lighting product.
Q: What is the maximum current I can drive continuously?
A: The absolute maximum continuous forward current is 60 mA. Exceeding this will likely degrade the LED junction rapidly or cause catastrophic failure.
Q: Is the XL-2835SURC-02 ROHS compliant?
A: Yes, the datasheet explicitly states that the product is an environmental protection product compliant with ROHS directives.
