ð Product Overview

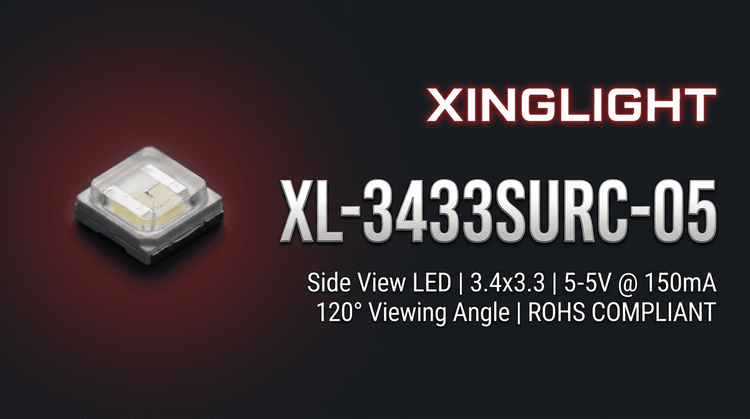

The XL-3433SURC-05 is a high-performance Red SMD LED manufactured by XINGLIGHT. ðĄ Housed in a compact 3.4x3.3mm package with a colorless transparent lens, it is engineered to deliver intense luminosity suitable for challenging environments.
Target applications primarily include automotive lighting (such as taillights and interior illumination) and commercial signage. ð The real design focus lies in its ability to handle a maximum continuous forward current of 150mA. This makes it ideal for designers needing high-reliability components for SMT automated production and infrared reflow soldering processes.
ð Typical Applications
Based on the datasheet parameters, particularly the high luminous intensity and wide viewing angle, this component fits the following use cases:
- Automotive Lighting: Tail lights, turn signals, and interior cabin lights.
- Commercial Display: Advertising lightboxes and channel letters.
- Backlighting: LCD backlight units requiring uniform red illumination.
- Decorative Lighting: Flexible light strips for accent or mood lighting.
ð Key Technical Specifications
The table below summarizes the optical and electrical characteristics at Ta=25â.
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Conditions |
|---|---|---|---|---|---|---|
| Luminous Intensity | ÎĶ | 23 | - | 39 | LM | IF = 150mA |
| Dominant Wavelength | Îŧd | 615 | - | 630 | nm | IF = 150mA |
| Forward Voltage | VF | 1.8 | - | 2.4 | V | IF = 150mA |
| Viewing Angle | 2Ã1/2 | - | 120° | - | deg | IF = 150mA |
| Peak Wavelength | Îŧp | - | 625 | - | nm | IF = 150mA |
| Reverse Current | IR | - | - | âĪ5 | ΞA | VR = 5V |
ðĄ Design Note: The component is sorted by brightness (Codes J2-J4), voltage (N12-7 to N12-9), and wavelength (HR01-HR03).
ð Absolute Maximum Ratings & Process Limits
Exceeding these values may cause permanent damage. â ïļ Thermal management is critical when driving at the upper limits.
| Parameter | Symbol | Value | Unit | Notes |
|---|---|---|---|---|
| Max Power Dissipation | PD | 500 | mW | |
| Max Continuous Forward Current | IF | 150 | mA | |
| Peak Forward Current | IFP | 300 | mA | Pulse âĪ0.1ms, Duty âĪ1/10 |
| Max Reverse Voltage | VR | 5 | V | |
| ESD Ability | ESD | 2000 | V | |
| Operating Temperature | TOPR | -40 ~ +85 | â | |
| Storage Temperature | TSTR | -40 ~ +85 | â | |
| Soldering Temp/Time | TSOL | 260 | â | âĪ6 Seconds |
ðĶ Package, Dimensions & Assembly Notes
- Outline Dimensions: 3.4mm (L) x 3.3mm (W) x 1.9mm (H).
- Packaging: EIA standard compliant, suitable for SMT automatic production.
- Moisture Sensitivity: MSL Level 3. Ensure proper baking before reflow if exposed to ambient moisture.
- Soldering: Compatible with Infrared Reflow.
- Lead-Free Process: Peak temp 255â (Max 260â), time above 217â: 60-120s.
- Lead Process: Peak temp 235â (Max 240â), time above 183â: 60-150s.
ð·ïļ Sourcing & Supply Considerations
- Authenticity: Verify packaging markings to ensure genuine XINGLIGHT components.
- Bin Selection: Specify brightness (J2-J4) and wavelength (HR01-HR03) codes during procurement to maintain color consistency.
- MSL Handling: Confirm storage conditions; if the bag has been opened, follow bake-out procedures for MSL Level 3 to prevent popcorning during assembly.
â FAQ
Q: What is the maximum current I can drive the XL-3433SURC-05 with continuously?
A: The Absolute Maximum Rating for continuous forward current is 150mA. While it can handle peaks up to 300mA, continuous operation above 150mA will degrade the lifespan.
Q: Is this LED suitable for outdoor automotive use?
A: Yes, it is designed for automotive applications. However, the -40â to +85â operating range must be respected, and adequate moisture protection (MSL 3) should be considered during the PCB assembly process.
Q: What does the "Colorless Transparent" colloid mean for my design?
A: It means the encapsulation resin is clear. This typically results in higher luminous intensity and a wider viewing angle (120°) compared to diffused lenses, but it requires careful optical design to avoid hotspots.
Q: Can I use a standard leaded soldering profile?
A: The datasheet specifies parameters for both Lead and Lead-Free processes. For lead-free, do not exceed a peak temperature of 260â (255â recommended).
Q: How do I ensure color consistency across batches?
A: Use the Dominant Wavelength binning codes (HR01, HR02, HR03). Requesting a specific bin code when ordering ensures the red hue remains consistent across your product line.
Q: What is the Moisture Sensitivity Level (MSL)?
A: It is Level 3. This means the components can be exposed to ambient climate for 168 hours (one week) before they require baking prior to soldering to prevent internal damage.
