📌 Product Overview

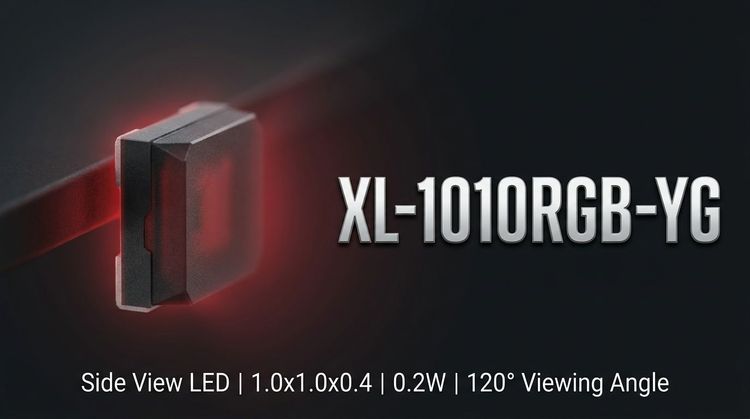

The XL-1010RGB-YG is a surface-mount LED with a compact 1.0x1.0x0.4mm footprint, designed for high-density applications. It delivers vibrant, high-brightness multi-color output through a transparent epoxy package. This component is engineered for seamless integration into automated SMT production lines and is suitable for infrared reflow soldering, making it ideal for modern electronics manufacturing.
📌 Typical Applications
- 🏠 Household Electric Appliances
- 🏥 Healthcare & Medical Devices
- 🏠 Smart Home Systems
- 🎧 Bluetooth Audio Equipment
- 💡 Backlight Displays
- 🚗 Automotive Instrumentation
- 🌃 Lighting Decoration
- 👕 Specialized Clothing
📌 Key Technical Specifications
The XL-1010RGB-YG provides a balanced performance profile suitable for diverse backlighting and indicator applications. Key electrical and optical characteristics are measured at Ta=25°C and IF=20mA.
| Parameter | Symbol | Red (R) | Green (G) | Blue (B) | Unit |
|---|---|---|---|---|---|
| Light Intensity | IV | 100-200 | 500-1000 | 100-200 | mcd |
| Dominant Wavelength | λD | 620-625 | 515-530 | 460-475 | nm |
| Forward Voltage | VF | 1.8-2.4 | 2.6-3.4 | 2.6-3.4 | V |
| Half Light Angle | 2θ1/2 | 120 | 120 | 120 | deg |
📌 Absolute Maximum Ratings & Process Limits
Adherence to these absolute maximum ratings is critical for device reliability and preventing permanent damage. Operating conditions must remain within these specified limits for all color channels.
| Parameter | Symbol | Value | Unit |
|---|---|---|---|
| Max Continuous Forward Current | IF | 20 | mA |
| Max Peak Forward Current | IFP | 60-80 | mA |
| Max Reverse Voltage | VR | 5 | V |
| Operating Temperature | TOPR | -40 to +85 | °C |
| Soldering Temp/Time | TSOL | 260°C ≤ 6s | / |
| ESD Protection | ESD | 2000 | V |
📌 Package, Dimensions & Assembly Notes
The XL-1010RGB-YG utilizes a standard SMD package with precise outline dimensions of 1.0x1.0x0.4mm (L/W/H). It is compliant with EIA standard packaging for automated handling. The device has a Moisture Sensitivity Level (MSL) of 3, requiring standard bake and handling procedures before SMT assembly. It is fully compatible with standard infrared reflow soldering processes.
📌 Sourcing & Supply Considerations
- Binning Grades: Units are graded for brightness (D2-E9), voltage (N11-4, N13-2/3), and wavelength (HR02, HB04-HB06, HG02-HG04) to ensure consistency.
- RoHS Compliant: The product meets all RoHS environmental standards.
- Supply Chain: For samples, lead times, or authentic distributor verification, please contact XINGLIGHT directly.
📌 FAQ
Q: What is the brightness grading for the Green (G) channel? A: The Green channel has higher brightness grades, ranging from E5 (550-600 mcd) to E9 (900-1000 mcd) at IF=20mA, compared to the Red and Blue channels.
Q: Are brightness and wavelength tolerances tightly controlled? A: Yes, brightness has an error tolerance of ±10%, while wavelength is tightly controlled within ±1 nm for precise color reproduction.
Q: What is the recommended soldering profile for this LED? A: The XL-1010RGB-YG is suitable for infrared reflow soldering, with a peak soldering temperature not exceeding 260°C for a duration of 6 seconds or less.
Q: Can this LED be used in high-temperature automotive environments? A: The device has an operating temperature range of -40°C to +85°C, making it suitable for many automotive instrument panel applications within this thermal limit.
Q: What is the Moisture Sensitivity Level (MSL)? A: The MSL is 3, which means it requires standard moisture-sensitive handling procedures, such as baking and the use of a dry cabinet, before SMT assembly.
