📌 Product Overview

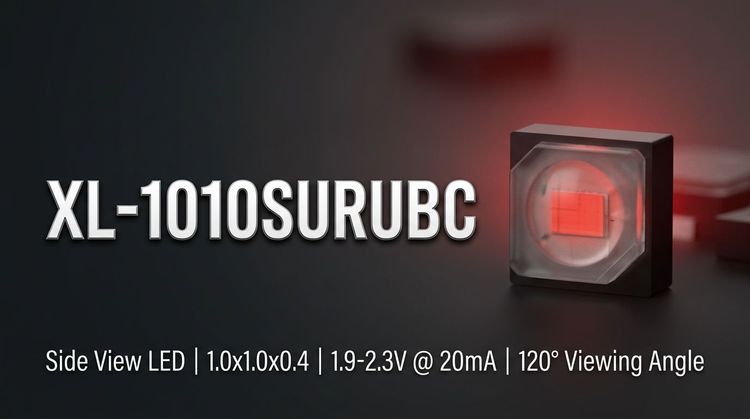

The XL-1010SURUBC is a ultra-compact surface-mount LED featuring dual red/blue emission in a 1.0x1.0x0.4mm package. Designed for high-density PCB assembly, it offers consistent brightness and wavelength grading for precision applications. Its suitability for infrared reflow soldering and RoHS compliance makes it ideal for mass production in consumer electronics, medical devices, and automotive instrumentation where miniaturization and reliability are critical.
🎯 Typical Applications
- Household electric appliances
- Healthcare equipment
- Smart home devices
- Bluetooth audio indicators
- Backlight displays
- Automotive instrument clusters
- Architectural lighting
- Specialized wearables
⚙️ Key Technical Specifications
| Parameter | Symbol | Red (Min/Typ/Max) | Blue (Min/Typ/Max) | Unit |
|---|---|---|---|---|
| Light Intensity (IF=20mA) | IV | 100/240 mcd | 80/240 mcd | mcd |
| Dominant Wavelength (IF=20mA) | λD | 615-630 nm | 460-475 nm | nm |
| Forward Voltage (IF=20mA) | VF | 1.9-2.3 V | 2.6-3.4 V | V |
| Half Intensity Angle | 2θ1/2 | 120° | 120° | deg |
🔒 Absolute Maximum Ratings & Process Limits
| Parameter | Symbol | Value | Unit |
|---|---|---|---|
| Max Power Dissipation | PD | 50 (R) / 70 (B) | mW |
| Max Continuous Forward Current | IF | 20 | mA |
| Peak Forward Current (≤0.1ms) | IFP | 60 (R) / 80 (B) | mA |
| Max Reverse Voltage | VR | 5 | V |
| Operating Temperature | TOPR | -40 to +85 | °C |
| Soldering Temp/Time | TSOL | 260°C ≤ 6s | - |
📦 Package, Dimensions & Assembly Notes
- Outline: 1.0x1.0x0.4mm (L/W/H)
- Package Type: SMD, water-clear epoxy
- Moisture Sensitivity: MSL Level 3
- SMT Compatibility: Suitable for infrared reflow soldering (lead-free/leaded profiles). Pre-drying recommended for MSL 3 components.
🚀 Sourcing & Supply Considerations
- Binning Codes: Brightness (D2-D6), voltage (N11-N13), and wavelength (HR01-HB06) grades available for consistency control.
- Packaging: EIA standard tape-and-reel for automated SMT placement.
- Authenticity: Verify XINGLIGHT markings and traceable lot codes to avoid counterfeit components.
❓ FAQ
Q: What brightness binning options are available?
A: Brightness is graded D2 (80-120 mcd) to D6 (210-240 mcd) with ±10% tolerance.
Q: Is the XL-1010SURUBC suitable for lead-free reflow?
A: Yes, it complies with lead-free IR reflow profiles (max 255°C, 10-15s dwell).
Q: How does wavelength grading impact design?
A: Wavelength is binned in 5nm increments (e.g., HR01: 615-620nm) for color-critical applications.
Q: What’s the ESD rating?
A: 2000V HBM, requiring standard ESD handling during assembly.
Q: Can it withstand automotive temperature cycles?
A: Yes, tested for -40°C to +85°C operation and 100 cold/hot cycles per MIL-STD.
```
