📌 Product Overview

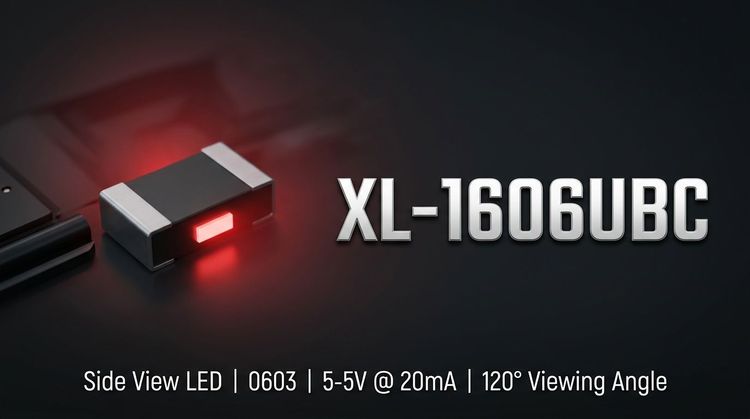

The XL-1606UBC is a standard 0603 package size (1.6mm x 0.8mm footprint) surface-mount device (SMD) from XINGLIGHT, featuring a high-brightness blue emitter with a water-clear colloid. It is engineered to balance luminous intensity—ranging from 80 to 300 mcd—with a wide 120° viewing angle, making it suitable for uniform backlighting and status indication. 💡
Designed to meet ROHS requirements and EIA standard packaging specifications, this component ensures compliance with modern environmental and supply chain standards. It is optimized for automated SMT production lines, supporting efficient reflow soldering processes.
📌 Typical Applications
This component is widely utilized in compact electronic designs where board space is at a premium but consistent light output is critical.
- Mobile & Consumer Devices: 🔈 Backlighting for mobile phones, digital products, and keypads.
- Electronic Indication: 📊 Status indicators and pilot lamps on appliance control panels.
- Display Systems: 🔆 Light sources for small-scale electronic display screens.
- General Lighting: 🏠 Auxiliary indoor and outdoor illumination fixtures.
📊 Key Technical Specifications
The optical and electrical performance of the XL-1606UBC is tested under standard conditions (Ta=25°C). The table below outlines the critical parameters for circuit design.
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Conditions |
|---|---|---|---|---|---|---|
| Luminous Intensity | Iv | 80 | - | 300 | mcd | IF=20mA |
| Dominant Wavelength | λd | 460 | - | 475 | nm | IF=20mA |
| Forward Voltage | VF | 2.7 | - | 3.3 | V | IF=20mA |
| Viewing Angle | 2Ø1/2 | - | - | 120 | deg | IF=20mA |
| Reverse Current | IR | - | - | 5 | μA | VR=5V |
| Half Wave Width | Δλ | - | 25 | - | nm | IF=20mA |
⚠️ Absolute Maximum Ratings & Process Limits
To ensure reliability and prevent permanent damage, designers must strictly adhere to these absolute maximum ratings (Ta=25°C). Exceeding these values risks catastrophic failure or degraded LED lifespan.
| Parameter | Symbol | Value | Unit | Notes |
|---|---|---|---|---|
| Max Power Dissipation | PD | 70 | mW | Derate above 25°C ambient |
| Max Continuous Forward Current | IF | 20 | mA | - |
| Peak Forward Current | IFP | 80 | mA | Pulse width ≤0.1ms, Duty ≤1/10 |
| Max Reverse Voltage | VR | 5 | V | - |
| ESD Susceptibility | ESD | 2000 | V | Human Body Model (HBM) |
| Operating Temperature | TOPR | -40 ~ +85 | °C | - |
| Storage Temperature | TSTR | -40 ~ +85 | °C | - |
| Soldering Temp (Lead) | TSOL | 260 | °C | ≤6 Seconds |
📦 Package, Dimensions & Assembly Notes
The XL-1606UBC utilizes a compact 1606 metric (0603 imperial) form factor. The specific outline dimensions are 1.7mm (L) x 0.6mm (W) x 1.1mm (H), allowing for tight component placement on high-density PCBs.
- Soldering Compatibility: 🧲 Suitable for both No-Clean and Water-Soluble flux processes.
- Reflow Profile: Supports standard Infrared Reflow welding (Max 255°C for lead-free).
- MSL Level: 🔒 Rated at Moisture Sensitivity Level 3 (Floor Life 168 hours at 30°C/60% RH).
- Packaging: 📼 EIA standard tape and reel format for automated feeder systems.
🚀 Sourcing & Supply Considerations
When integrating the XL-1606UBC into BOMs, engineers should consider color consistency and supply grading.
- Binning Codes: 📝 Specific selection is available via Brightness (D2-D8), Voltage (N11/N12), and Wavelength (HB04-HB06) codes.
- Authenticity: ✅ Verify that suppliers provide original XINGLIGHT packaging with valid date codes to avoid counterfeit components.
- Mass Production: 🏭 Ensure samples match the designated bin codes prior to bulk ordering to maintain display uniformity.
❓ FAQ
Q: What is the maximum forward current for the XL-1606UBC during operation?
A: The maximum continuous forward current is 20 mA. However, a pulse peak current of up to 80 mA is permissible, provided the pulse width does not exceed 0.1ms and the duty cycle remains ≤ 1/10.
Q: How is the brightness sorted for this specific LED model?
A: XINGLIGHT uses a brightness grading system where code "D2" represents 80–120 mcd and ranges up to code "D8" for 270–300 mcd at 20 mA. This helps engineers manage luminous uniformity in their applications.
Q: Is this LED suitable for lead-free reflow soldering processes?
A: Yes, the XL-1606UBC is compatible with lead-free soldering. The maximum recommended soldering temperature is typically limited to 260°C for ≤6 seconds for manual soldering, or standard profiles (Max 255°C) for reflow.
Q: What are the storage limitations to prevent moisture damage?
A: The component is classified at Moisture Sensitivity Level (MSL) 3. If the moisture barrier bag is opened, components should be mounted within 168 hours (7 days) at 30°C and 60% Relative Humidity to avoid pop-corning during reflow.
Q: What is the forward voltage range required to drive this LED?
A: The forward voltage (VF) varies between 2.7V and 3.3V at a test current of 20 mA. Designers should utilize these limits to calculate appropriate resistor values for constant voltage drivers.
