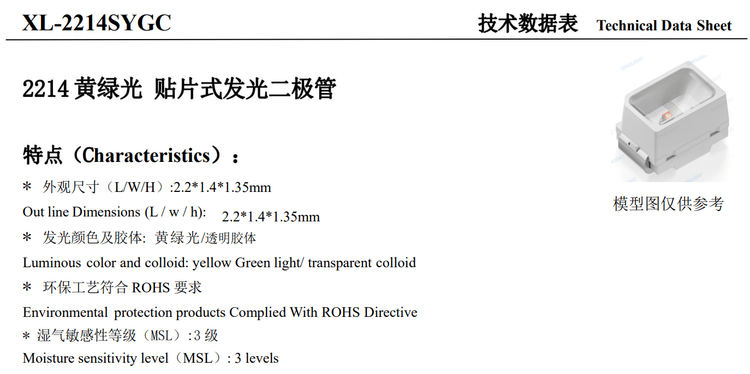

XL-2214SYGC is a surface mount device (SMD) LED featuring a yellow green transparent colloid phosphor. With compact dimensions of 2.2x1.4x1.35mm and 50mW power dissipation, this LED delivers 80-120mcd luminous intensity depending on drive conditions.
Product Overview
XL-2214SYGC provides reliable lighting performance for applications requiring efficient yellow green LED solutions. The compact 2.2x1.4x1.35mm footprint makes it suitable for high-density SMT assembly on automotive and commercial lighting PCBs.
Key Specifications
Electrical Parameters:
- Power Dissipation: 50 mW
- Forward Current: 20 mA / 80 mA (peak)
- Luminous Intensity: 80-120 mcd
- ESD Capability: 2000 V
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Soldering Temperature: 260°C (max 6 seconds)
Optical Characteristics:
- Emitted Color: Yellow Green / Transparent colloid
- Dominant Wavelength: 565-575 nm
- Peak Wavelength: 572-582 nm
- Viewing Angle: 2θ1/2 = 120° (Deg = 2)
Application Scenarios
This LED supports diverse lighting applications across multiple industries:
- Commercial Lighting: Displays, signage, advertising lightboxes, retail fixtures
- Automotive: Interior lighting, dashboard indicators, ambient lighting
- Indoor: General illumination, accent lighting, mood lighting
- Backlighting: LCD panels, displays, indicators
- Decorative: Flexible strips, architectural features, ambient effects
Technical Features
- ROHS Compliant: Environmentally friendly
- MSL 3: Moisture sensitivity level 3
- SMT Compatible: Automated production friendly
- Standard Packaging: EIA compliant
- Reflow Soldering: Suitable for infrared reflow process
Procurement Considerations
For procurement teams evaluating XL-2214SYGC:
- Assess your specific application requirements and brightness needs (80-120mcd range)
- Compare against similar 2.2x1.4mm SMD LED alternatives
- Consider supply availability for yellow green colloid variants
- Evaluate total cost of ownership including assembly and reliability factors
The XL-2214SYGC offers a balance of compact footprint and reliable performance for applications requiring cost-effective yellow green LED solutions. Reach out to discuss volume requirements and technical specifications for your next project.
