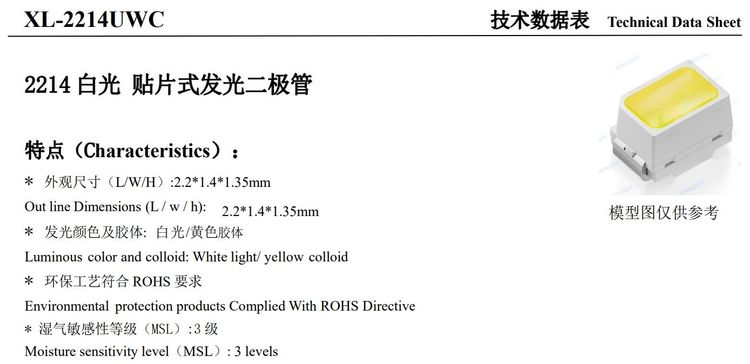

XL-2214UWC is a surface mount device (SMD) LED featuring a yellow colloid phosphor. With compact dimensions of 2.2x1.4x1.35 mm and 70 mW power dissipation, this LED delivers 2000-2600 mcd luminous intensity depending on drive conditions.
Product Overview
XL-2214UWC provides reliable lighting performance for applications requiring efficient yellow LED solutions. The compact 2.2x1.4x1.35 mm footprint makes it suitable for high-density SMT assembly.
Key Specifications
Electrical Parameters:
- Power Dissipation: 70 mW
- Forward Current: 20 mA / 80 mA (peak)
- Luminous Intensity: 2000-2600 mcd
- ESD Capability: 2000 V
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Soldering Temperature: 260°C (max 6 seconds)
Optical Characteristics:
- Emitted Color: White / Yellow
- Color Temperature: 6000K / 6500K
- Viewing Angle: 2θ1/2 = 120°
Application Scenarios
This LED supports diverse lighting applications across multiple industries:
- Commercial Lighting: Displays, signage, advertising lightboxes
- Automotive: Interior lighting, dashboard indicators
- Indoor: General illumination, accent lighting
- Backlighting: LCD panels, displays
- Decorative: Flexible strips, architectural features
Technical Features
- ROHS Compliant: Environmentally friendly
- MSL 3: Moisture sensitivity level 3
- SMT Compatible: Automated production friendly
- Standard Packaging: EIA compliant
Procurement Considerations
For procurement teams evaluating XL-2214UWC:
- Assess your specific application requirements and brightness needs
- Compare against similar 2.2x1.4 mm SMD LED alternatives
- Consider supply availability for yellow colloid variants
- Evaluate total cost of ownership including assembly and reliability factors
The XL-2214UWC offers a balance of compact footprint and reliable performance for applications requiring cost-effective yellow LED solutions. Reach out to discuss volume requirements and technical specifications for your next project.
