📌 Product Overview

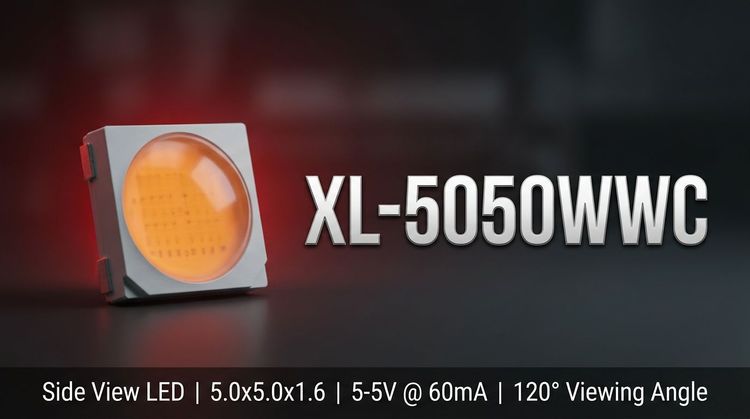

The XL-5050WWC from XINGLIGHT is a 5.0x5.0x1.6mm surface-mount device (SMD) engineered for high-brightness warm white applications. 💡 Encapsulated in a yellow colloid, this component is optimized for SMT automatic production and infrared reflow soldering processes, ensuring seamless integration into modern manufacturing lines. Its design prioritizes thermal stability and luminous consistency, making it a reliable choice for compact lighting modules.
🚀 Typical Applications
- Indoor & General Lighting: Deployment in residential and commercial ceiling lights, downlights, and fixtures.
- Retail Display: High-CRI illumination for jewelry display cabinets, shop counters, and accent lighting. ✨
- Signage & Advertising: Backlighting for luminescent characters and advertising modules requiring uniform warm tones.
- Auxiliary Lighting: Functional supplementary lighting in electronic devices or machinery indicators.
📊 Key Technical Specifications
| Parameter | Symbol | Min | Typ | Max | Unit | Conditions |
|---|---|---|---|---|---|---|
| Luminous Flux | Φ | 13 | 20 | 27 | LM | IF=60mA |
| Color Temperature | TC | 2800 | — | 3200 | K | IF=60mA |
| Forward Voltage | Vf | 2.8 | — | 3.4 | V | IF=60mA |
| Viewing Angle | 2θ1/2 | — | 120 | — | Deg | IF=60mA |
| Reverse Current | Ir | — | — | 5 | μA | VR=5V |
Note: Engineering samples should be verified against specific bin codes (H8-J2) for flux and (WW2-4/WW4-4) for color temperature consistency.
🚨 Absolute Maximum Ratings & Process Limits
🔒 Exceeding these parameters may result in permanent device failure.
| Parameter | Symbol | Max Value | Unit | Notes |
|---|---|---|---|---|
| Max Power Dissipation | PD | 200 | mW | Ta=25°C |
| Max Continuous Forward Current | IF | 60 | mA | |
| Peak Forward Current | IFP | 120 | mA | Pulse ≤0.1ms, Duty ≤1/10 |
| Max Reverse Voltage | VR | 5 | V | |
| ESD Ability | ESD | 2000 | V | Human Body Model |
| Operating Temperature | TOPR | -40 ~ +85 | °C | |
| Storage Temperature | TSTR | -40 ~ +85 | °C | |
| Soldering Temp/Time | TSOL | 260 | °C | ≤6 Seconds |
📦 Package, Dimensions & Assembly Notes
- Outline Dimensions: The component features a standard 5.0x5.0x1.6mm footprint, compatible with EIA standard packaging tapes.
- Soldering Profile: Designed for Infrared Reflow processes.
- Lead-Free Process: Peak temp 255°C (Max 6°C/s ramp).
- Lead Process: Peak temp 235°C.
- Manual Soldering: Max 260°C for ≤6 seconds. ⚠️
- Moisture Sensitivity: Classified as MSL 3. Ensure proper baking before reflow if floor life is exceeded to prevent "popcorning" damage.
🤝 Sourcing & Supply Considerations
- Binning Verification: Confirm specific Brightness (H8-J2) and Voltage (N13) bin codes with the supplier to ensure batch-to-batch optical consistency.
- Supply Chain Compliance: Verify that stock complies with ROHS directives for environmental safety.
- Sample Evaluation: Request aged samples for life-cycle testing, specifically checking lumen maintenance at 60mA drive currents.
- Authenticity: Cross-reference packaging markings with datasheet revisions to avoid mixed or counterfeit batches in mass production.
❓ FAQ
Q: What is the typical forward voltage range for the XL-5050WWC?
A: The forward voltage (Vf) ranges from a minimum of 2.8V to a maximum of 3.4V when driven at the rated current of 60mA. Designers should select driver circuits that accommodate this voltage spread (N13-3 to N13-5 bins).
Q: Can this LED be used in outdoor applications?
A: The datasheet specifies Indoor Lighting and Advertising Modules as primary applications. While the storage and operating temperatures (-40°C to +85°C) suggest robustness, the package is not specifically rated for high UV exposure or direct water ingress (IP rated) without additional enclosure protection.
Q: What is the moisture sensitivity level (MSL) for this component?
A: The XL-5050WWC has an MSL rating of 3. This means it can be exposed to ambient factory conditions (≤30°C / 60% RH) for 168 hours before requiring baking to prevent moisture-induced damage during reflow soldering.
Q: What is the maximum current I can drive the LED with?
A: The Max Continuous Forward Current is 60mA. While it can handle pulses up to 120mA (provided the pulse width is ≤0.1ms and duty cycle ≤1/10), driving it continuously above 60mA will likely degrade the junction and shorten lifespan.
Q: How should I handle the soldering process for this LED?
A: Use an Infrared Reflow soldering process. For lead-free profiles, the peak temperature should not exceed 255°C, with time above 217°C limited to 60-120 seconds. Manual soldering should not exceed 260°C for more than 6 seconds.
Q: How is the color temperature consistency managed?
A: XINGLIGHT uses Color Temperature Grading codes (e.g., WW2-4 for 2800-3000K and WW4-4 for 3000-3200K). Procurement orders must specify the desired bin code to ensure uniform color appearance across the final product.
