XINGLIGHT XL-2214BGWC is a high-brightness ice blue LED designed for surface mount technology (SMT) applications. With its compact 2.2×1.4×1.35mm package and excellent optical performance, this LED is ideal for commercial lighting, automotive interior illumination, and display applications.
Product Overview

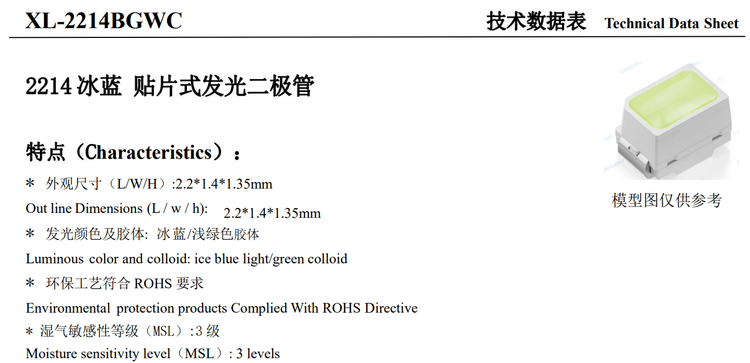

Emitting Color: Ice blue / Green colloid Package Type: SMT surface mount Dimensions (L×W×H): 2.2×1.4×1.35mm Moisture Sensitivity Level (MSL): 3 Packaging: EIA standard compliant
Key Features
✅ ROHS compliant environmental protection ✅ Suitable for SMT automated production ✅ Compatible with infrared reflow soldering process ✅ 2000V ESD protection ✅ Wide operating temperature range (-40°C to +85°C)
Electrical and Optical Characteristics
Absolute Maximum Ratings (Ta=25°C)
| Parameter | Value | Unit |
|---|---|---|
| Power Dissipation | 70 | mW |
| Peak Forward Current (1/10 Duty, 0.1ms) | 80 | mA |
| Forward Current | 20 | mA |
| ESD Capability | 2000 | V |
| Operating Temperature | -40 to +85 | °C |
| Storage Temperature | -40 to +85 | °C |
| Soldering Temperature | ≤255 | °C |
Optical Characteristics (IF=20mA)
| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Luminous Intensity | 2000 | -- | 2600 | mcd |
| Chromaticity Coordinate X | -- | 0.20 | -- | -- |
| Chromaticity Coordinate Y | -- | 0.29 | -- | -- |
| Viewing Angle (2θ1/2) | -- | 120 | -- | deg |
| Forward Voltage | 2.7 | -- | 3.3 | V |
| Reverse Current (VR=5V) | -- | -- | 1 | μA |
Brightness and Voltage Grading
Luminous Intensity Bins
| Bin | Min (mcd) | Max (mcd) |
|---|---|---|
| F7 | 2000 | 2200 |
| F8 | 2200 | 2400 |
| F9 | 2400 | 2600 |
Forward Voltage Bins
| Bin | Min (V) | Max (V) |
|---|---|---|
| N11-8 | 2.7 | 2.9 |
| N11-9 | 2.9 | 3.1 |
| N12-1 | 3.1 | 3.3 |
Target Applications
XL-2214BGWC ice blue LED is designed for:
🔆 Commercial Lighting Displays
- Advertising light boxes
- Signage and channel letters
- Information displays
🚗 Automotive Interior Lighting
- Dashboard indicators
- Interior ambient lighting
- Control panel illumination
💡 Indoor Lighting
- Decorative fixtures
- Cabinet lighting
- Under-cabinet illumination
📺 LCD Backlighting
- Small display panels
- Indicator backlights
- Button illumination
✨ Decorative Lighting
- Flexible light strips
- Accent lighting
- Holiday decorations
Why Choose XL-2214BGWC?
High Brightness: With luminous intensity up to 2600 mcd, this LED delivers exceptional brightness in a compact package.
Wide Viewing Angle: The 120° viewing angle ensures even light distribution and flexible application design.
Reliable Performance: 2000V ESD protection and ROHS compliance ensure long-term reliability and environmental compliance.
SMT Compatible: The 2.2×1.4×1.35mm package is designed for automated SMT production lines, reducing assembly costs.
Wide Temperature Range: Operating from -40°C to +85°C, suitable for harsh automotive and outdoor environments.
Soldering Guidelines
- Peak Soldering Temperature: 255°C
- Suitable for: Infrared reflow soldering process
- Packaging: EIA standard packaging for automated pick-and-place
