XINGLIGHT XL-5050RGBC is a high-brightness RGB LED designed for surface mount technology (SMT) applications. With its 5.0×5.0×1.6mm package and independent red, green, and blue chips, this LED offers flexible color mixing for indoor lighting, advertising displays, signage, and decorative applications.

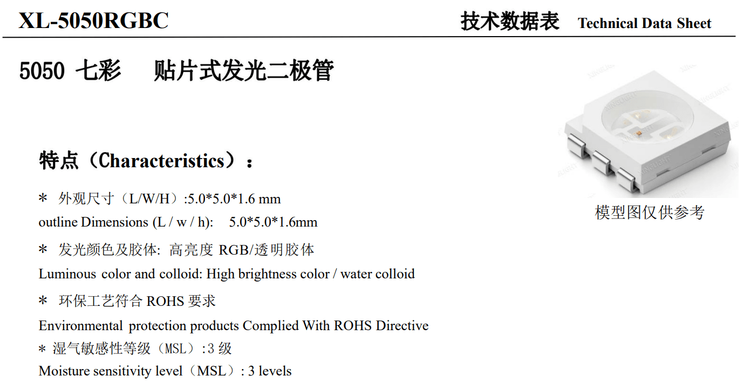

Product Overview
Emitting Color: High-brightness RGB / Transparent colloid Package Type: SMT surface mount Dimensions (L×W×H): 5.0×5.0×1.6mm Moisture Sensitivity Level (MSL): 3 Packaging: EIA standard compliant
Key Features
✅ ROHS compliant environmental protection ✅ Suitable for SMT automated production ✅ Compatible with infrared reflow soldering process ✅ 2000V ESD protection ✅ Wide operating temperature range (-40°C to +85°C) ✅ Independent control for R, G, B channels
Absolute Maximum Ratings (Ta=25°C)
| Parameter | Rating (R/G/B) | Unit |
|---|---|---|
| Power Dissipation | 50/70/70 | mW |
| Peak Forward Current (1/10 Duty, 0.1ms) | 80 | mA |
| Forward Working Current | 20 | mA |
| Reverse Voltage | 5 | V |
| ESD Capability | 2000 | V |
| Operating Ambient Temperature | -40 to +85 | °C |
| Storage Ambient Temperature | -40 to +85 | °C |
| Reflow Soldering | 260°C, 6s | - |
| Manual Welding | 300°C, 3s | - |
Note: Pulse width ≤ 0.1ms, Duty ≤ 1/10
Optical Characteristics (IF=20mA, Ta=25°C)
| Color | Light Intensity | Dominant Wavelength | Forward Voltage | Viewing Angle | Reverse Current |
|---|---|---|---|---|---|
| Red (R) | 300-500 | 620-630 nm | 1.9-2.3 V | 120° | ≤5 μA |
| Green (G) | 900-1500 | 515-530 nm | 2.8-3.4 V | 120° | ≤5 μA |
| Blue (B) | 350-450 | 460-470 nm | 2.8-3.4 V | 120° | ≤5 μA |
Tolerance: Light intensity ±10%, Forward voltage ±0.1V, Chromaticity (X,Y) ±0.01, Wavelength ±1nm
Target Applications
XL-5050RGBC RGB LED is designed for:
🏠 Indoor Lighting
- Residential lighting
- Office lighting
- Commercial indoor illumination
💡 Auxiliary Lighting
- Accent lighting
- Fill lighting
- Supplemental illumination
🏪 Advertising Module Lighting
- LED advertising signs
- Display modules
- Promotional lighting
✨ Luminescent Characters
- LED letter displays
- Channel letters
- Backlit signage
🏬 Counter Lighting
- Store counter illumination
- Checkout lighting
- Product display lighting
🏬 Shop Lighting
- Retail store lighting
- Showroom lighting
- Commercial space illumination
💎 Jewelry Display Cabinet Lighting
- Showcase illumination
- High-CRI display lighting
- Premium product display
📝 Channel Lettering
- 3D channel letters
- Acrylic letter lighting
- Storefront signs
🪧 Signage and Identification
- Directional signage
- Safety indicators
- Identification marks
📦 Advertising Light Boxes
- Light box illumination
- Poster display lighting
- Billboard backlighting
🎨 Lighting Decoration
- Architectural lighting
- Festive decorations
- Event lighting
Why Choose XL-5050RGBC?
High Brightness: With intensity up to 1500 mcd (green), this LED delivers exceptional brightness for demanding applications.
True RGB Color: Independent red, green, and blue chips enable vibrant color mixing and dynamic effects.
Wide Application Range: From indoor lighting to advertising displays, signage, and decorative lighting.
Compact Package: 5.0×5.0×1.6mm SMT package ideal for automated assembly.
Reliable Performance: 2000V ESD protection, ROHS compliance, and wide temperature range ensure durability.
Soldering Guidelines
Reflow Soldering: 260°C, 6 seconds Manual Welding: 300°C, 3 seconds Note: Pulse width ≤ 0.1ms, Duty cycle ≤ 1/10 for peak current operation.
About XINGLIGHT
XINGLIGHT is a leading LED manufacturer specializing in high-quality LED components for automotive, industrial, and consumer lighting applications. With strict quality control and advanced production capabilities, XINGLIGHT delivers reliable LED solutions that meet international standards including IATF 16949 automotive certification.
