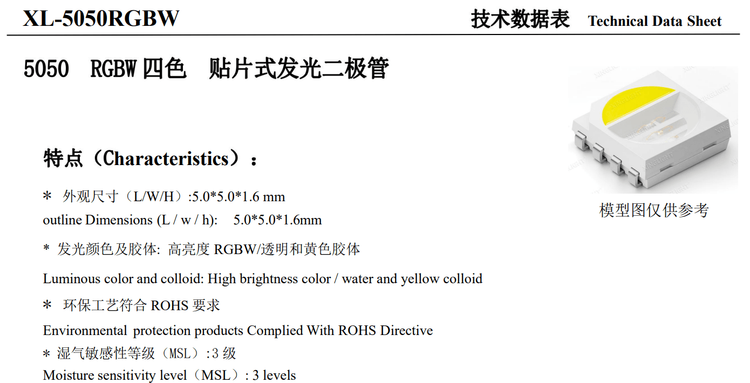

XINGLIGHT XL-5050RGBW is a high-brightness 4-in-1 RGBW LED featuring independent red, green, blue, and white chips in a single 5.0×5.0×1.6mm SMT package. This versatile LED offers flexible color control and excellent brightness for household appliances, smart home devices, backlighting, and automotive applications.
Product Overview
Emitting Color: High-brightness RGBW / Transparent and yellow colloid
Package Type: SMT surface mount
Dimensions (L×W×H): 5.0×5.0×1.6mm
Moisture Sensitivity Level (MSL): 3
Packaging: EIA standard compliant
Key Features
✅ ROHS compliant environmental protection
✅ Suitable for SMT automated production
✅ Compatible with infrared reflow soldering process
✅ 2000V ESD protection
✅ Wide operating temperature range (-40°C to +85°C)
✅ Independent control for R, G, B, W channels
Absolute Maximum Ratings (Ta=25°C)
| Parameter | Rating (R/G/B) | Rating (W) | Unit |
|---|---|---|---|
| Power Dissipation | 50 | 70 | mW |
| Peak Forward Current (1/10 Duty, 0.1ms) | 80 | 80 | mA |
| Forward Working Current | 20 | 20 | mA |
| Reverse Voltage | 5 | 5 | V |
| ESD Capability | 2000 | 2000 | V |
| Operating Ambient Temperature | -40 to +85 | °C | |
| Storage Ambient Temperature | -40 to +85 | °C | |
| Reflow Soldering | 260°C, 6s | - | |
| Manual Welding | - | 300°C, 3s |
Note: Pulse width ≤ 0.1ms, Duty ≤ 1/10
Optical Characteristics (IF=20mA, Ta=25°C)
| Color | Light Intensity/Lumen | Dominant Wavelength | Color Temperature | Forward Voltage | Viewing Angle | Reverse Current |
|---|---|---|---|---|---|---|
| Red (R) | 600-800 mcd | 620-630 nm | - | 2.0-2.4 V | 120° | ≤5 μA |
| Green (G) | 1000-1300 mcd | 515-525 nm | - | 3.0-3.4 V | 120° | ≤5 μA |
| Blue (B) | 350-450 mcd | 460-470 nm | - | 3.0-3.4 V | 120° | ≤5 μA |
| White (W) | 20-27 lm | - | 6000-6500 K | 3.0-3.4 V | 120° | ≤5 μA |
Target Applications
XL-5050RGBW RGBW LED is designed for:
🏠 Household Electric Appliances
- Air conditioner indicators
- Refrigerator lighting
- Microwave oven displays
🏥 Healthcare and Medical Devices
- Medical equipment indicators
- Healthcare monitor displays
- Diagnostic device lighting
🏡 Smart Home Devices
- Smart lighting controls
- Home automation indicators
- IoT device status lights
🎵 Bluetooth Audio Equipment
- Speaker indicator lights
- Audio device status
- Volume control indicators
📺 Backlight Displays
- LCD backlighting
- Display panel illumination
- Button backlights
🚗 Automotive Instruments
- Dashboard indicators
- Instrument cluster lighting
- Control panel displays
📊 Quantitative Engineering
- Measurement device displays
- Instrumentation lighting
- Calibration indicators
Why Choose XL-5050RGBW?
4-in-1 Design: Independent R, G, B, and W chips in a single package enable flexible color mixing and control.
High Brightness: Red (up to 1300 mcd), green (up to 1300 mcd), blue (up to 450 mcd), and white (up to 27 lm) for vibrant displays.
Wide Color Range: Full RGBW spectrum allows precise color control for smart lighting and indication applications.
Compact Package: 5.0×5.0×1.6mm SMT package ideal for automated assembly and space-constrained designs.
Reliable Performance: 2000V ESD protection, ROHS compliance, and wide temperature range ensure durability.
Flexible Soldering: Supports both reflow soldering (260°C) and manual welding (300°C) for various production processes.
Soldering Guidelines
Reflow Soldering: 260°C, 6 seconds
Manual Welding: 300°C, 3 seconds
Note: Pulse width ≤ 0.1ms, Duty cycle ≤ 1/10 for peak current operation.
About XINGLIGHT
XINGLIGHT is a leading LED manufacturer specializing in high-quality LED components for automotive, industrial, and consumer lighting applications. With strict quality control and advanced production capabilities, XINGLIGHT delivers reliable LED solutions that meet international standards including IATF 16949 automotive certification.
Need samples or technical support? Contact LDeepAI for availability and pricing information.
