📌 Product Overview

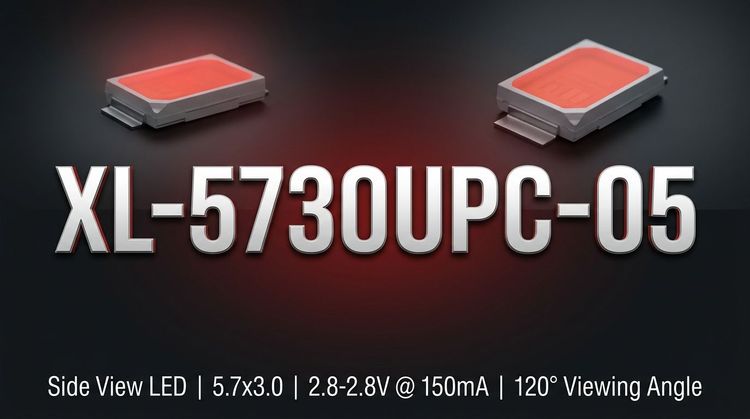

💡 The XL-5730UPC-05 is a 0.5W SMD LED from XINGLIGHT, utilizing a standard 5730 footprint (5.7x3.0mm). It is designed for applications requiring specific Pink (PC Pink) lighting effects. The device is optimized for automated SMT assembly and is compliant with RoHS directives.
👇 This component is intended for integration into compact light engines where consistent color rendering (CIE coordinates X: 0.287, Y: 0.117) and reliable thermal performance are critical for product longevity.
💡 Typical Applications
Based on its luminous intensity and 120-degree viewing angle, this model is suited for:
- Decorative Lighting: Flexible light strips and accent lighting requiring pink hues.
- Commercial Signage: Advertising characters and light boxes needing uniform backlight.
- General Illumination: Downlights and fluorescent tube replacements where ambient mood lighting is required.
- LCD Backlighting: Indicator lights and display illumination.
⚡ Key Technical Specifications
The following optical and electrical parameters are measured under standard test conditions (Ta=25°C, IF=150mA):
| Parameter | Symbol | Min. | Typ. | Max. | Unit |
|---|---|---|---|---|---|
| Luminous Intensity | Φ | 27 | 40 | 52 | LM |
| Forward Voltage | VF | 2.8 | -- | 3.4 | V |
| Viewing Angle | 2θ1/2 | -- | 120 | -- | Deg |
| Reverse Current | Ir | -- | -- | 5 | μA |
| Power Dissipation | PD | -- | -- | 500 | mW |
| Chromaticity (X) | X | -- | 0.287 | -- | -- |
| Chromaticity (Y) | Y | -- | 0.117 | -- | -- |
⚠️ Absolute Maximum Ratings & Process Limits
Exceeding these ratings may cause permanent device failure. Derating is required for high-temperature environments.
| Parameter | Symbol | Value | Unit | Notes |
|---|---|---|---|---|
| Max Forward Current | IF | 150 | mA | Continuous operation |
| Peak Forward Current | IFP | 300 | mA | Pulse width ≤0.1ms, Duty ≤1/10 |
| Max Reverse Voltage | VR | 5 | V | |
| ESD Tolerance | ESD | 2000 | V | Human Body Model (HBM) |
| Operating Temp. | TOPR | -40 ~ +85 | °C | |
| Storage Temp. | TSTR | -40 ~ +85 | °C | |
| Soldering Temp. | TSOL | 260 | °C | ≤6 Seconds (Lead Soldering) |
📦 Package, Dimensions & Assembly Notes
- Outline Dimensions: 5.7mm (L) x 3.0mm (W) x 0.8mm (H).
- Moisture Sensitivity: The component is classified as MSL Level 3.
- 🔒 Requirement: Floor life at <30°C/60% RH is 168 hours. Bake before reflow if exposed beyond this limit.
- Soldering Profile: Suitable for Infrared Reflow.
- Lead-free: Max 255°C (Peak) / Lead-based: Max 235°C.
- Packaging: Standard EIA compliant tape and reel for automated pick-and-place machines.
🚀 Sourcing & Supply Considerations
To mitigate supply chain risks when integrating the XL-5730UPC-05:
- Bin Consistency: Strictly define Brightness (J3-J6) and Voltage (N13-3 to N13-5) bins at the PO stage to ensure lot-to-lot uniformity.
- Color Binning: Verify the CIE coordinates (1# or 2# Bin) match previous production runs to avoid visible color shifts.
- Authenticity: Source through authorized channels to guarantee compliance with ROHS and thermal reliability specs.
❓ FAQ
Q: What is the typical Forward Voltage (VF) for this LED?
A: The typical VF is not listed as a single value, but the range is 2.8V to 3.4V at 150mA. It is binned into groups (N13-3, N13-4, N13-5) to aid in power supply design.
Q: Can this component be used in high-humidity environments?
A: Yes, it undergoes High-Temperature/High-Humidity Storage tests (85°C / 90-95% RH). However, as an MSL 3 device, it must be baked prior to reflow if the moisture barrier bag has been open for more than 168 hours.
Q: What are the binning codes for Luminous Intensity?
A: Brightness is sorted into four codes: J3 (27-33 lm), J4 (33-39 lm), J5 (39-45 lm), and J6 (45-52 lm).
Q: Is this LED suitable for outdoor flexible light strips?
A: While electrically suitable (rated -40°C to +85°C), the pink colloid material may have specific UV stability requirements. Verify the IP rating of the final encapsulation if using outdoors.
Q: What is the ESD rating?
A: The XL-5730UPC-05 has an antistatic ability of 2000V, requiring standard ESD precautions (wrist straps, ionizers) during handling and assembly.
